Fire Fighting Pipe

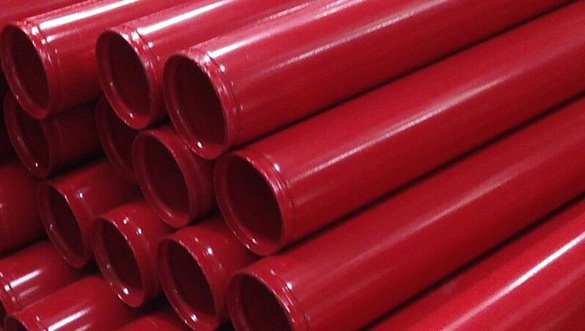

Fire fighting pipe is a kind of normal carbon steel pipe for conveying water, gas and other fire suppression agents. It's usually in red. But the exterior of the light-wall is galvanized silvery. The installation of a red steel pipe is only to be used as a wet sprinkler system. Dry and wet pipe sprinkler systems (including pre-action pipe sprinkler systems) are allowed to install galvanized .

Since the installation of the first fire protection system, black steel has been the traditional leader of the fire sprinkler pipe market because of its strength, durability, and extreme resistance to heat exhibited. With a melting point between a whopping 2,600°F and 2,800°F (1,427°C and 1,538°C), steel pipe can withstand the heat of burning buildings, it even can keep water flowing over a fire.

Steel Pipe for Fire Protection Systems

Fire suppression are easy to form, bend, and fabricate, which can be manufactured in various sizes, shapes and configurations. Steel pipe has been the main material of sprinkler piping systems for a long time. Steel is considered strong, durable and resistant to fire. With a melting point of about 2,700°F, the fire service pipe can withstand the heat of a burning building.

Steel fire sprinkler can be connected by screw thread, welded connection, rolling connection and groove cutting connection. Threading is only allowed for Schedule 40 or heavier pipe. However, if a lighter wall pipe is listed by a specialized thread testing laboratory, NFPA 13 (National Fire Protection Association) will allow the lighter wall pipe threads.

Fire Fighting Pipe's National Standard

GB/T5135.20-2010 standard

GB/T17219-1998 standard

CJ/T120-2008 standard.

GB50261-2010 national standard automatic sprinkler system Part 20: Coated steel

Fire Fighting Pipe's Technical Parameter

Coating material: modified heavy anti-corrosion epoxy resin

Universal color: red

Coating thickness: 250um-550 um Coating method: Fluidized bed impregnation process, one-time film formation.

Product specifications: DN15-DN1200

Ambient temperature: -30 ° C to 80 ° C (peak 760 ° C)

Regular pressure: 0.1Mpa-2.5Mpa

Connection method: thread, groove, flange connection, etc.

Application areas: fire water supply, gas supply, foam medium conveying pipeline system

Hebei Tianchuang Pipe Co., Ltd is one of the perfect highway guardrail suppliers,we provide steel fire sprinkler pipe,fire suppression pipe,fire protection piping specifications,protection pipe,fire protection pipe,fire pipe supply and fire hydrant pipe,RFQ today.
