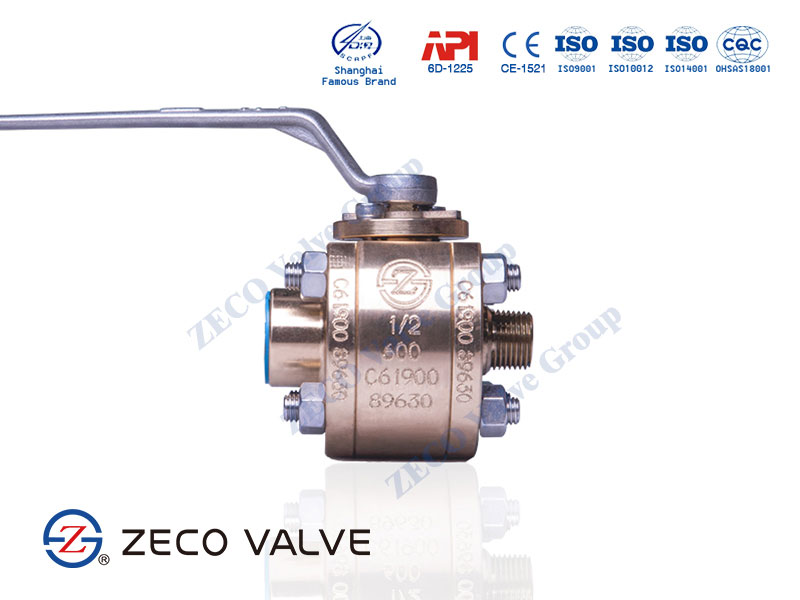

Forged Ball Valve

Description of Forged Ball Valve:

ZECO forged ball valve is divided into forged two-piece ball valves and forged three-piece ball valves, as well as small diameter forged ball valves and large diameter forged ball valves, which are widely used in various high-pressure industrial conditions. Usually pressure at 600 lb, 800 lb, 900 lb, 1500 lb, working temperature in various pipeline - 46 ℃ ~ 425 ℃.Of course, 150LB and 300LB of low pressure are also frequently used in the list of users. Its materials also include ASTM A105, ASTM A182 F304, ASTM A182 F316, ASTM B283 C61900, ASTM B148 C95800 and other forging materials.

Features of Forged Ball Valve:

1. ZECO forged ball valve has double piston effect seats which are pressure energized in both directions. So the seat rings are always pushed against the ball by the pressure from upstream/downstream or from the cavity. If the upstream seat fails, the downstream seat can still ensure a tight seal. Widely used in specific applications or for some pipe pressure testing. Since double piston effect valves do not have the self-relieving function, the automatic cavity-pressure relief valve shall be provided, unless otherwise agreed;

2. ZECO forged ball valve has one self-relieving seat. If the force created by the body cavity pressure is greater than the preloaded spring force plus the force created by the pressure from pipeline, the cavity pressure releases via the self-relieving seat, the double piston effect seat still functions a tight seal;

3. ZECO forged ball valve is available in additional configurations upon request, like Delta ring seat design, it's easier to seal;

4. ZECO forged ball valve is available in additional configurations upon request, like Lipseal design, it's easier to preserve.

ZECO is a professional Valve factory, we provide trunnion mounted ball valve china, international standard valve and etc. Contact us to know forged ball valve price or more
