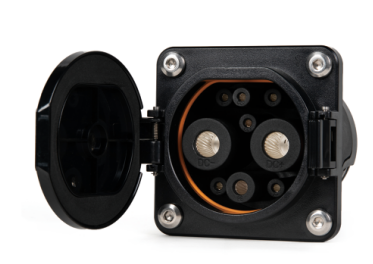

GB/T EV DC Charging Socket
Mechanical Life
lMechanical life: no-load plug>10000times
lInsertion force: <140N</span>
Applied Material
Shell material: thermoplastics, flame retardant grade UL94-0
Contact-tube: Copper alloy, silver-plated
Environmental performance
Operating temperature: -30℃~+50℃
Electrical Performance
The rated current: 80A, 125A, 200A, 250A
The rated voltage: 750V/1000V
Insulation resistance: >2000MΩ(DC1000V)
Pins temperature rise: <50K</span>
Withstand voltage: 4500V (DC+/DC-/PE)
Contact impedance: 0.5mΩMax
Features of GB/T EV DC ev socket
Conform to the provisions and requirements of GB/ T 20234.2-2015.
Have one or two PTC (PT1000) thermistor (can match with hela lock) ,have functions of signal feedback.
Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it.
Reliable material, flame retardant, presssure proof, wear-resisting, impact resistance, high oil proof.
Excellent protection performance, prodection grade achieved IP55 (working condition).
GBT EV DC electric vehicle charging socket Parameter
Product Type |
Rated Current |
Cable Specifications |
Note |
AG-GBDC-C80S |
80A |
H07BZ5-F2X20mm2+1x25mm2+2x4mm2+8x0.75mm2 |
Wire length and tail end treatment according to customer configuration. |
AG-GBDC-C125S |
125A |
H07BZ5-F2X35mm2+1 x25mm2+2x4mm2+8x0.75mm? |
|
AG-GBDC-C200S |
200A |
H07BZ5-F2X70mm2+1x25mm2+2x4mm2+8x0.75mm2 |
|
AG-GBDC-C250S |
250A |
H07BZ5-F2X95mm2+1x25mm2+2x4mm2+8x0.75mm2 |
As the ev charging suppliers. Our electric car socket types are various, welcome to buy.
With the help of experienced cable specialist from ONITL, AG ELECTRICAL has strong confidence on the EV charging Components from quality perspective, and become the famous top electric vehicle charging companies. Powered by ONITL Cable Technology, who has been working in cable industry for decades, has become a great advantage of AG products. AG ELECTRICAL has deployed with Manufacturing Execution System(MES). It means we can handle different custom products from different customers at the same time. We can provide high quality EV Charging Cable connectors with highly recommendations from customers in the past few years.
