GEMHJ-D50X Muti-Function Soldering Laser Welding Machine
GEMHJ-D50X laser welding machine price is a kind of robot and machine vision dual positioning, can achieve multi-point high-precision automatic continuous tin and welding equipment, and this product looks beautiful and beautiful, Control the focus spot, high positioning accuracy, easy to achieve automation.
GEMHJ-D50X-Multi-function soldering laser welding machine Feature
- fast, small deformation. Small point, energy concentration, accurate solder joints;
- can be at room temperature or special conditions for welding, welding equipment is simple.
- can be micro-welding. The laser beam can be obtained after spot focusing, and can be precisely positioned, and can be applied to a large number of automatic production groups and small parts for welding.
- Easy to operate, can replace the artificial
- Suitable for large-scale applications
GEMHJ-D50X-Muti-function soldering laser welding machine Specifications
Laser type: |
Fiber laser |
production methods: |
CW(continuous power) |
Laser wavelength |
808nm/9xxnm |
Laser power |
50W |
Spot |
0.4mm(min) |
Indicating light |
5mW/650nm |
Temperature monitoring |
|
cooling method |
Air-cooled |
Laser repetition frequency |
CW |
Energy instability |
≤2% |
Focus distance: |
50mm |
Laser semiconductor life: |
More than 20,000 hours |
Maximum welding speed |
0.2s |
Continuous working hours |
≥24 hours |
Worktable positioning accuracy |
±0.02mm |
Worktable repeatability |
±0.01mm |
Table carrying |
10KG |
Input power |
Simplex AC220/50Hz |
Current |
5A |
Total power |
1KW |
Total Weight |
20KG |
GEMHJ-D50X-Multi-function soldering laser welding machine Application
Applicable VCM motor coil welding, flexible circuit board FPC or hard circuit board PCB welding, high precision LCD screen LCD welding, temperature sensitive components, FPC flexible circuit board, connector laser welding, and other electronic processing industry.

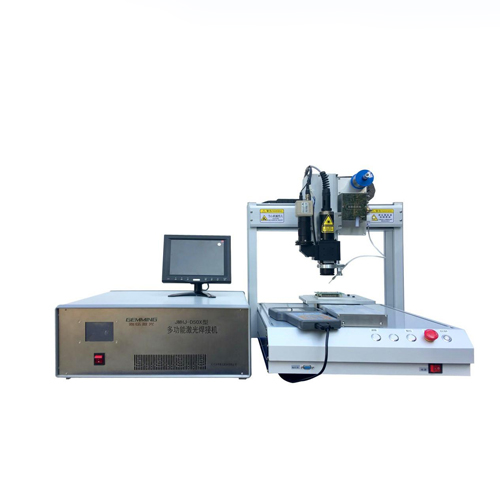

Sample of GEMHJ-D50X Muti-Function Soldering Laser Welding Machine
