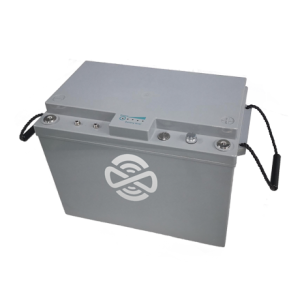

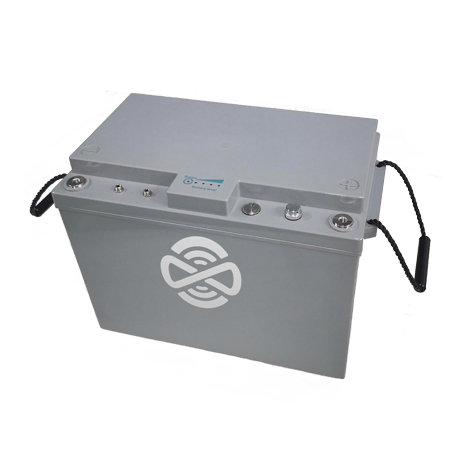

Golf Cart Li-ion Battery
Product introduction of 12V160Ah-200Ah-51.2V40Ah-50Ah lithium golf cart battery pack
ACE is an industry leading manufacturer focusing on R&D, production and sales of lithium-ion cell and custom lithium ion battery packs, serving diversified industries covering e-mobility to various industrial applications. With 20 years' experience in the industry, we have accumulated profound engineering capabilities and exported products to more than 30 countries. ACE lithium batteries can be used in a variety of MEWP applications, offers a range of advanced safety, environmental, Intelligent, run time and lifetime from its superior cell and battery design to its intelligent. ACE lithium batteries deliver outstanding return on investment over time.
Product Features of 12V160Ah-200Ah-51.2V40Ah-50Ah Golf Cart Battery
Low voltage is 48Vdc. 50Ah or 100Ah
Life cycle: >5000 (80% DOD)
Long service life design
Front / Rear Installation optional
Communication protocols: CANBUS
Easy to extend capacity by paralleled for 51.2V
Easy to extend voltage by series for 12.8V
LiFePO4 cells, safer and more stable
Separate control and protection for charge and discharge processes
Real-time detection of the voltage, current, temperature, SOH, and SOC
Maintenance-friendly
Support for parallel connection
Application Scenarios
2-11 seats Club car / Golf cart
2-11 seats Electric boat
2 seats Electric two wheels
2-11 seats Electric three wheels
Specifications of 12V160Ah-200Ah-51.2V40Ah-50Ah Golf Cart Battery
|
Model |
ACEGC51.2V 40Ah |
ACEGC51.2V 50Ah |
ACEGC12.8V 160Ah |
ACEGC12.8V 200Ah |
|
Cell Material |
LFP 2614897 |
LFP 26148129 |
LFP 2614897 |
LFP 26148129 |
|
Cell Specifications |
3.2V/40Ah(16S1P) |
3.2V/50Ah(16S1P) |
3.2V/40Ah(4S4P) |
3.2V/50Ah(4S4P) |
|
Rated Voltage [V] |
51.2 |
51.2 |
12.8 |
12.8 |
|
Rated Capacity [Ah] |
40 |
50 |
160 |
200 |
|
Total Energy [Wh] |
2048 |
2560 |
2048 |
2560 |
|
Charge Voltage [V] |
58.4 |
|||
|
Max. Charge Current [A] |
20 |
25 |
80 |
100 |
|
EOD Voltage [V] |
44.8 |
44.8 |
11.2 |
11.2 |
|
Max. Discharge Current [A] |
180 |
|||
|
Max Discharge Currrent Time for [ in] |
3 |
|||
|
Peak Discharge Current [A, <1s]</span> |
510 |
|||
|
Dimensions [W*D*H, mm] |
345*190*245 |
|||
|
Weight [ g] |
18.5 |
22.5 |
18.5 |
22.5 |
|
Fuse |
Yes |
|||
|
Max. Number of Packs |
8P1S |
8P1S |
4S4P |
4S4P |
|
(In Parallel or In series ) |
||||
|
IP Grade |
IP65 / IP67 |
|||
|
Storage Temperature |
-20°C to +55°C |
|||
|
Working Temperature |
Charge: 0°C to 45°C |
|||
|
Operating Temperature |
Discharge: -20°C to +60°C |
|||
|
Relative Humidity |
0 ~ 95%RH (non-condensing) |
|||
|
Communication Port |
Double CAN |
|||
|
Protection |
Over voltage protection, low voltage protection, high temperature protection, low |
|||
|
temperature protection, and short circuit protection |
||||
|
Certification |
IEC62619, UN38.3, FCC, ROHS |
|||
Now the price of club car golf cart batteries for sale is affordable, if you have needs, please contact us.
As one of lithium cell manufacturers, we have types of related products for sale, if you are interested, please leave us a message.
