Grade D shipbuilding steel plate
Détails
Chine (Rép. pop) Matières premières
Matières premières

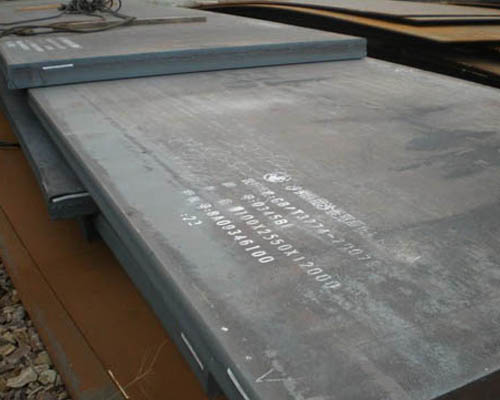

Grade D shipbuilding steel plate

Grade D shipbuilding steel plate
Grade: Grade D
Type: steel plate, steel angle, bulb plate
Standard: ABS, BV, GL, LR, NK, KR, DNV, RINA, CCS, A131
Specification: Thickness: 3mm--380mm||||||Width: 1000mm--4000mm||||||Length: 1000mm to 18000mm
Application: Grade D steel plates are mostly used in the Shipbuilding Industry for the construction of structural parts of ships, barges and marine equipment.Grade D Shipbuilding steel plates also can be used for ship repairing, the offshore oil drilling platform, the platform pipe joints and other components.
steel plateSend e-mail: sdjs@firsteelplate.comchat onlineLeave a message
Grade D Steel Introduction
Grad D Steel is a kind of hot rolled general tensile strength steel,it is ordinary-strength steel for shipbuilding.
Grade D Steel Delivery state
Grade D Steel products shall usually be delivered normalized, tempered, quenched, ultrasonic test(ASTM A578 Level C/Level B/Level A, ASTM A435, En10160-S4E3/S3E2/S2E1,S1E0), Z test(Z15, Z25 and Z35), TPI(Third Party Inspection), NDE(Non-Destructive Examination)
Grade D Steel Application
Grade D steel plates are mostly used in the Shipbuilding Industry for the construction of structural parts of ships, barges and marine equipment. Grade D Shipbuilding steel plates also can be used for ship repairing, the offshore oil drilling platform, the platform pipe joints and other components.
Grade D shipbuilding steel plate
Grade D Steel Chemical Composition Analysis
Grade Chemical Composition(%)
C Mn≥ Si P S Mark
Grade A 0.21 2.5×C 0.5 0.035 0.035 AB/A
Grade B 0.21 0.8 0.35 0.035 0.035 AB/B
Grade D 0.21 0.6 0.1-0.35 0.035 0.035 AB/D
Grade E 0.18 0.7 0.1-0.35 0.035 0.035 AB/E
Grade D Steel Mechanical Properties
Grade Mechanical Property
Tensile Strength(MPa) Yield Strength(MPa) % Elongation in 2 in.(50mm) min Impacting Test Temperature(°C)
Grade A 400-520 235 22 20
Grade B 0
Grade D -20
Grade E -40
Grade D Steel Packing
Grade D Steel Packing is normally wrapped by plastic film and waterproof paper, and then fastened on wooden pallet or as you request.
Localisation : No. 1394 Hanghai Road, Jingkai District, Zhengzhou City, 450000 Henan Province,
Personne à contacter : May liang, 8637155031159
