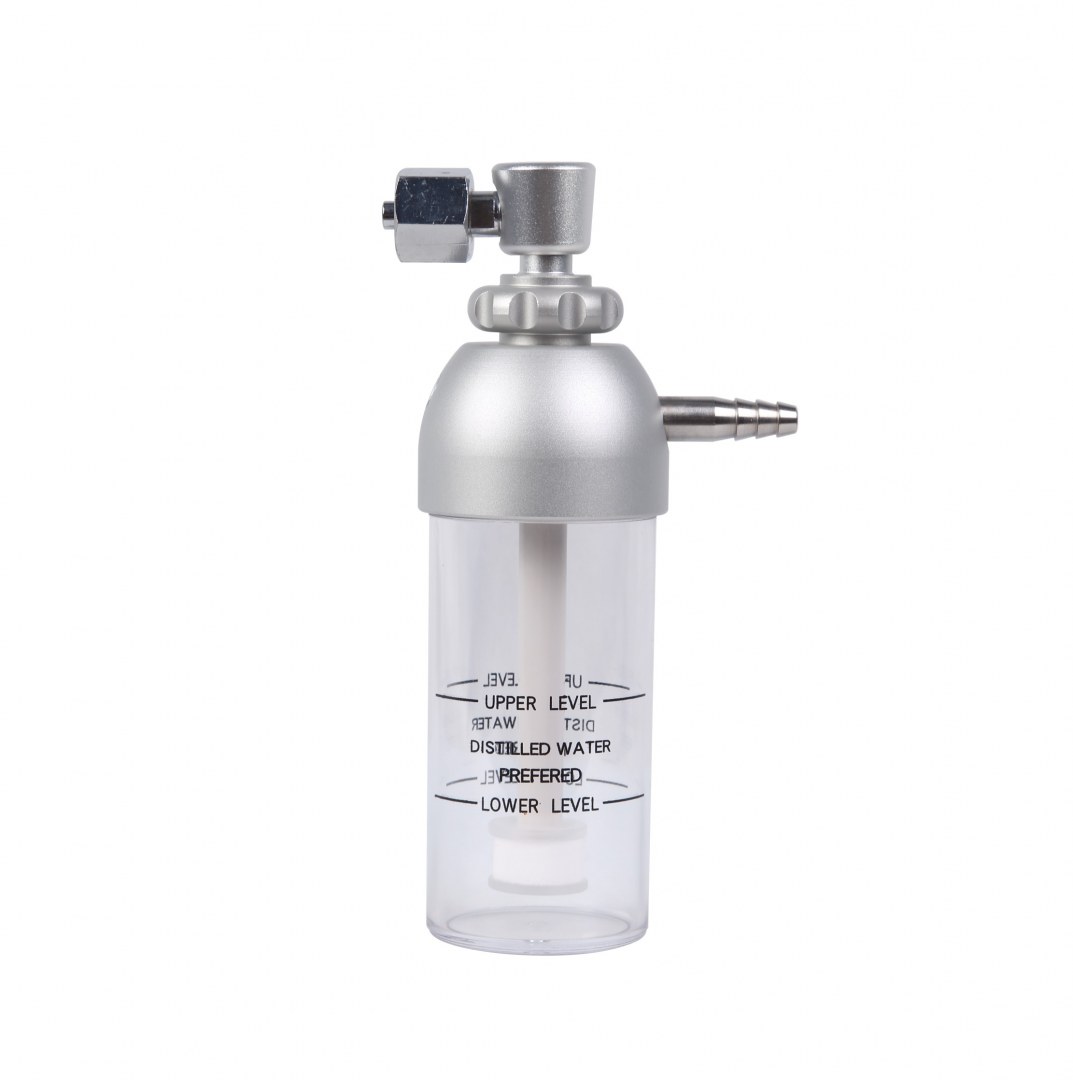

GZ-XRQ-1 Oxygen Inhaler (Oxygen Flowmeter With Humidifier 45-85ml)
As one of respiratory device companies, we are proud to introduce the Pigeon Medical oxygen inhaler, which equipped a 1-15LPM flow meter for pediatric and neonatal respiratory care with the high-quality copper and aluminum material components adopted. The valve element is abrasion-proof and the surface proceeds with anti-oxidation. The oxygen inhaler can be connected directly with an oxygen cylinder, hospital central oxygen supply, and oxygen concentrator to the infants in need of pure oxygen therapy. Meanwhile, the oxygen inhaler can be attached to Pigeon Medical air oxygen blender mixer for patients in need of mixed oxygen on a certain concentrated level.
The professionally designed high density and macromolecule filter efficiently make the humidification and filtration reliable and even. Moreover, the outer layer of the flow meter and humidification bottle are made of high-strength polycarbonate plastic, thence provide complete security avoiding gas or water leakage due to rupture or crack during clinical application.
Working Principle of GZ-XRQ-1 Oxygen Inhaler (oxygen flowmeter with humidifier bottle 45-85ml)
With special design structure and clear marking, Pigeon Medical oxygen inhaler defines simplicity which respiratory therapists only require relatively small amount of skill and experience in clinic operation.
Simply add distilled water until reaching middle level indicated on the humidification bottle, plug in the flow meter directly to the oxygen supply and inspect if any leakage occurs. Then adjust the flow on flow meter and pressure on valve respectively according to the patient's situation.
Features of GZ-XRQ-1 Oxygen Inhaler (Oxygen Flowmeter With Humidifier 45-85ml)
Flow 1-15LPM for pediatrics
Optional 6-60LPM for adults which will require external respiratory humidifier instead of humidification bottle
Can be equipped with oxygen regulator
OEM solution and affordable price especially for developing countries
Can be assembled with Pigeon Medical air oxygen blender
Specification of GZ-XRQ-1 Oxygen Inhaler (Oxygen Flowmeter With Humidifier 45-85ml)
Model |
GZ-XRQ-1 Oxygen Inhaler |
Pressure Resistance |
<1MPa</span> |
Working Pressure |
0.2-0.3MPa |
Safety Valve Pressure |
0.35 ± 0.05MPa, safety valve exhausts automatically |
Flow Control Range |
1-15LPM |
Humidification Bottle Capacity |
45-85ml |
Humidification Bottle Pressure |
0.5MPa ± 0.05MPa |
Material |
Stainless steel/polycarbonate plastic |
Practical Application of GZ-XRQ-1 Oxygen Inhaler (Oxygen Flowmeter Humidifier 45-85ml)
01.Hospital central oxygen supply
02.Oxygen cylinder
03.Oxygen concentrator
04.Air-oxygen blender
05.Oxygen therapy
If you want to know more about oxygen flow meter working principle, please cisit our website.
