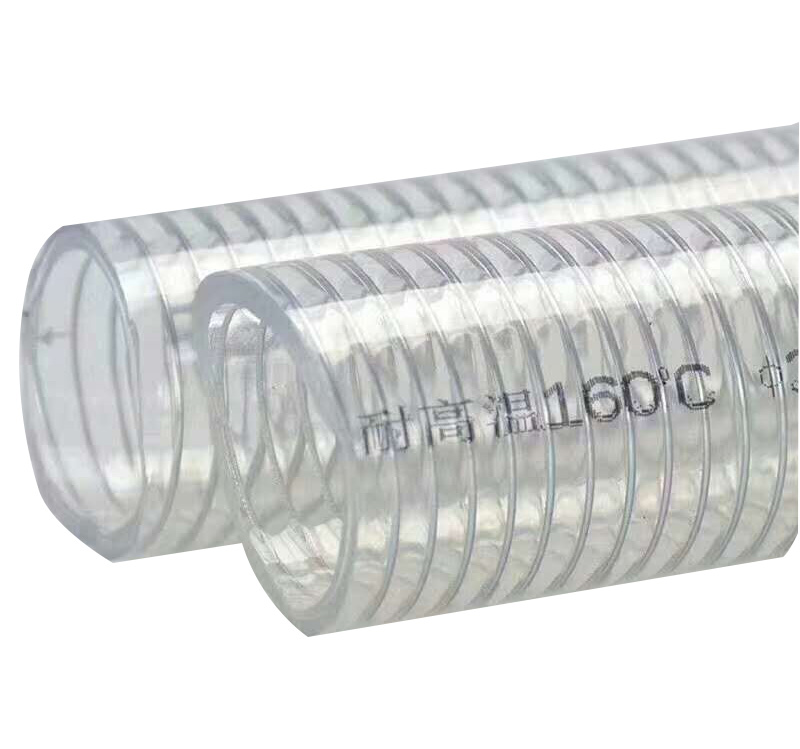

Heat Resistant PVC Steel Wire Hose
High-Temperature resistant flexible steel wire hose is made of good zinc plated metal wire and qualified heat resistant PVC compound.
The heat proof rubber hose can be used under 100 ℃ condition, suitable for different high temperature environment. The PVC steel wire hose (heat resistant flexible tubing) is widely used for suction and discharge of water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines.
Specification of Heat Resistant PVC Steel Wire Hose
|
Inch |
I.D.mm |
O.D.mm |
Length |
MAX.W.P.(BAR) |
MAX.B.P.(BAR) |
Weight(G/M) |
|
3/8" |
10 |
16 |
100 |
8 |
24 |
200 |
|
1/2" |
12 |
18 |
100 |
8 |
24 |
220 |
|
5/8" |
15 |
22 |
50 |
6 |
18 |
300 |
|
3/4" |
19 |
26 |
50 |
6 |
18 |
360 |
|
3/4" |
20 |
26 |
50 |
6 |
18 |
320 |
|
7/8" |
22 |
27 |
50 |
6 |
18 |
300 |
|
1" |
25 |
33 |
50 |
5 |
16 |
540 |
|
1-1/4" |
32 |
40 |
50 |
5 |
16 |
700 |
|
1-1/2" |
38 |
48 |
50 |
5 |
15 |
1000 |
|
1-3/4" |
45 |
56 |
50 |
5 |
15 |
1300 |
|
1-7/8" |
48 |
59 |
50 |
5 |
15 |
1400 |
|
2" |
50 |
62 |
50 |
5 |
15 |
1600 |
|
2-5/16" |
58 |
69 |
40 |
4 |
12 |
1600 |
|
2-1/2" |
64 |
78 |
30 |
4 |
12 |
2500 |
|
3" |
76 |
90 |
30 |
4 |
12 |
3000 |
|
3-1/2" |
90 |
108 |
20 |
4 |
12 |
4500 |
|
4" |
102 |
116 |
20 |
4 |
12 |
4300 |
Characteristics of PVC Heat Resistant Hose
Using special PVC material that is heat resistant, the high heat flexible hose is robust and abrasion resistant. The inside wall pf the pipe is smooth. The temperature range is from -10ºC to +60ºC.
Applications of China pvc hose
The application field of the heat resistant tube rubber hose can be generally classified into two parts, one is food grade application and the other is non-food application. For application in food, the fireproof hose is mainly used for the delivery and suction of foodstuffs and drinkable water etc. With regard to the non-food application, the heat resistant tubing can be used for suction and discharge of water, oil and powder in the factories, agriculture, engineering lines.
Structure of PVC Heat Resistant Hose
The structure of the heat resistant flexible tubing is mainly the transparent PVC hose reinforced by embedded steel wire.
As one of the hose manufacturers, we are the best choice to choose heat resistant hose.
