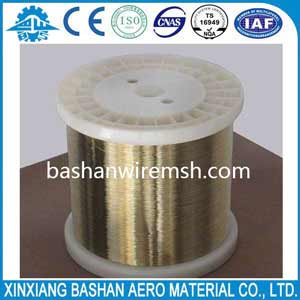

High performance EDM semihard wire
Quantité : 10 tons Prix : $ 7.2/kg
High performance EDM semihard wire
|
Product Name |
High performance EDM semihard wire |
|
composition |
Cu60%,Zn40% or Cu63%,Zn37% or Cu65%,Zn35% |
|
Wire diameter |
0.30mm, 0.25mm, 0.20mm,0.15mm,0.10mm |
|
Weight/Spool |
3kg/5kg/7kg/15kg/20kg |
|
Tensile strength: |
1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2 |
|
tolerance |
0.001 |
|
Ultimate Strength (≥ MPa) |
980 |
|
Packing |
Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance. |
|
Used |
Agie Charmillies, SODICK, Mitsubishi,Makino EDM machine |
Specification
High performance EDM semihard wire
|
Condition |
Diameter(mm) |
Tolerance(mm) |
Tensile Strength (N/mm²) |
Type of Spool |
|
Hard |
0.10 |
±0.001 |
≥980 |
DIN125(3kg,3.5kg |
|
0.15 |
±0.001 |
≥980 |
||
|
0.20 |
±0.001 |
≥980 |
DIN125(3kg,3.5kg) p5(5kg) |
|
|
0.25 |
±0.001 |
≥980 |
||
|
0.30 |
±0.001 |
≥980 |
||
|
Semi-hard |
0.25 |
±0.001 |
480~520 |
|
|
0.30 |
±0.001 |
|||
|
Soft |
0.25 |
±0.001 |
380~420 |
|
|
0.30 |
±0.001 |
Detailed Images:
High performance EDM semihard wire
Good conductivity, a large number of used in the manufacture of wires, cables, brushes, etc.
Features
High performance EDM semihard wire
1.High dimentional accurac
2.Diameter tolerence is kept to +0 ~ -0.002mm and circularity within 0.001mm.
3.Outstanding straightness
4.Stable mechanical properties
5.Tensil strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
6.Ultra-smooth surface
Packing:
1.A heavy paper dust protection: endometrial advantage.
2.Double protection: seal for PVC precision plastic mold.
3.Three protection: professional shockproof corrugated box
|
Material |
Type |
D1 |
D2 |
d |
W1 |
W2 |
Spool/box |
Spool W (k) |
Volum/box |
|
ABS |
DIN125 |
125 |
80 |
20 |
125 |
100 |
4 |
0.2 |
0.254X0.254X0.127=0.008M3 |
|
P3 |
130 |
80 |
20 |
110 |
90 |
4 |
0.2 |
0.264X0.224X0.132=0.008M3 |
|
|
P5 |
160 |
90 |
20 |
114 |
90 |
4 |
0.33 |
0.324X0.232X0.18=0.014M3 |
|
|
DIN160 |
160 |
100 |
22 |
160 |
128 |
2 |
0.35 |
0.324X0.162X0.18=0.009M3 |
|
|
DIN200 |
200 |
125 |
22 |
200 |
160 |
1 |
0.66 |
0.22X0.22X0.22=0.01M3 |
Our Company:
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
Contact:
Personne à contacter : Maggie Guan, +86 373 3091998
