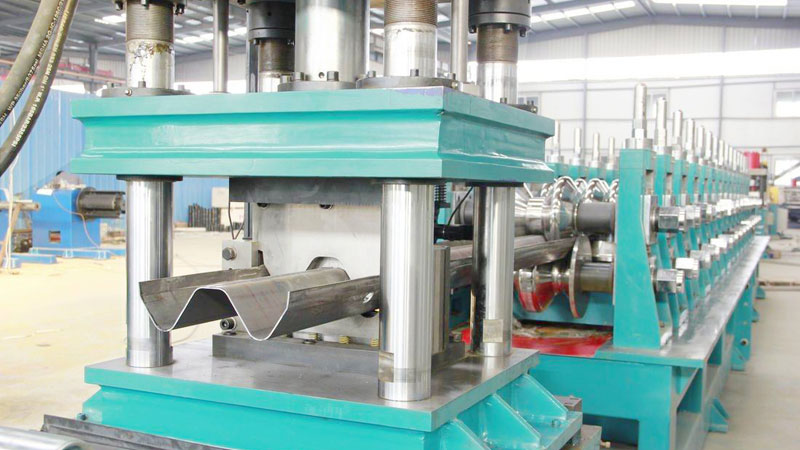

HIGHWAY GUARDRAIL & FENCE POST ROLL FORMING MACHINE
HIGHWAY GUARDRAIL & FENCE POST ROLL FORMING MACHINE
This series of rolling guardrail machines are equipped with a quick-change machine base for multi-profile purposes. The maximum production speed of our highway guardrail machines can reach 20m/min. With the help of this series, about 30-40 tons of barries and 10-12 tons of standing posts can be produced per 8 hours. Moreover, in order to further improve the production speed, devices including ground pit/overground accumulating unit, non-stop hole punching unit, flying tracking cutting, and automatic stacking devices are available for further selections. Prompt delivery is also available.
Suitable Coil Sheet Material for Highway Guardrail Machine
Suitable material |
Cold/hot Rolled Steel, Galvanized Steel |
Barrier Thickness |
3.0 (mm) |
Post thickness |
5.0(mm) |
Yield Strength |
230-300 (MPa) |
Width |
as profile requests |
Production Line Components and Parameters of Highway Guardrail Machine
1. Decoiler |
5t/8t/10t/15t |
2. leveling device |
|
3. coil ends butt-welding device |
|
4. underground pit/ over ground accumulating unit |
optional |
5. Servo Feeding Device |
|
6. Holes punching device |
|
7. ground pit/ over ground accumulating unit |
optional |
8. feeding and guiding device |
|
9. Roll forming system |
10-30m/min (adjustable) |
10. straighter |
|
11. flying cutting device |
no-stop, tracking |
12. Output Automatic Stacker |
Lateral/Longitudinal (optional) |
13. Electric control system |
MITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested ) |
Working Flow of Highway Guardrail Machine
Uncoiler - Leveling device - Cutting coil ends and butt-welding device - Ground pit/ overground accumulating unit - Servo feeding device - Hole punching device - Ground pit/ overground accumulating unit - Feeding and guiding unit - Roll Forming System - Straighter - Flying tracking Cutting to length - Output Automatic Stacker
Highway Guardrail Profile Drawings
Finished Panels by Highway Guardrail Machine
Specification of Highway Guardrail Machine
Machine Condition |
Fully New, A Grade quality |
Panel Shape |
As profile drawing and customer's requirements |
Operator needed |
1-2 people |
Power Supply |
220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
Equipment Weight |
About 40t |
Dimension |
(L*W*H) about 32*10*2m |
LOADING SIZE |
Normally need 3 x 40' (+1x20') container. |
Equipment Color |
Normally Blue/White, or as requests; |
Place of Origin |
Zhejiang, China (Mainland) |
Packing |
Standard and careful export packing |
HZrollforming, as a professional roll forming supplier, offers a wide range of roll forming equipment for you to choose from.
