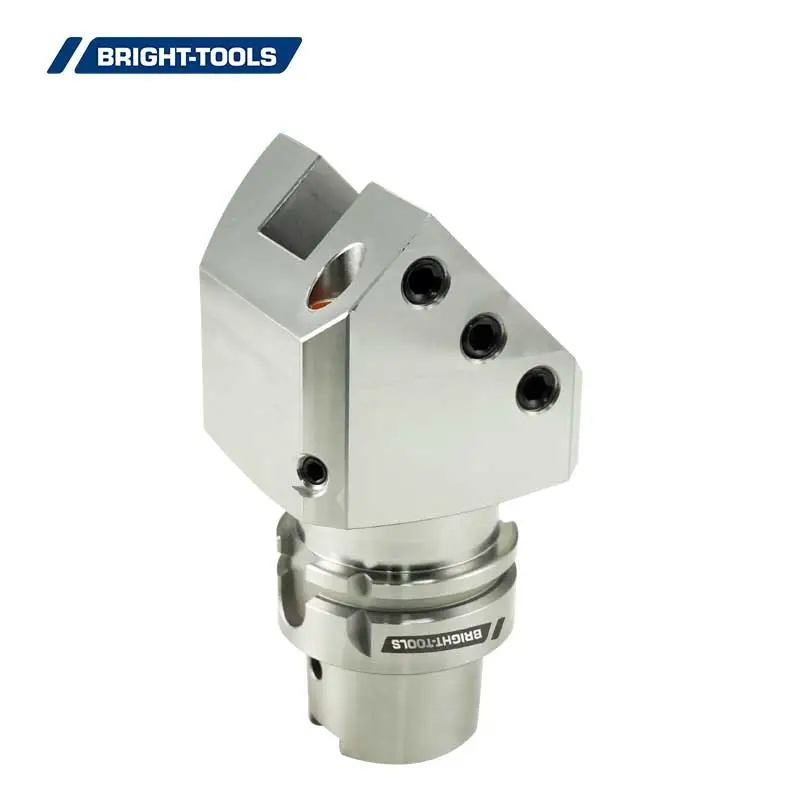

HSK･T Turning Tools for External and Facing
HSK-T SBN is for external turning tool holders, for external turning and facing operation, but it is with 45 deg angle, and one holder is for one direction, R is for the right hand and L is for the left hand.
TECHNICAL DRAWING OF HSK･T TURNING TOOLS FOR EXTERNAL AND FACING
|
Size |
L |
L1 |
L2 |
L3 |
L4 |
D1 |
B1 |
B2 |
B3 |
H1 |
H2 |
G |
|
HSK50T-SBN2020R-120 |
120 |
60 |
83.1 |
72.8 |
52.8 |
－ |
20 |
25 |
43.5 |
35 |
35 |
M10 |
|
HSK50T-SBN2020L-120 |
120 |
60 |
83.1 |
72.8 |
52.8 |
－ |
20 |
25 |
43.5 |
35 |
35 |
M10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HSK63T-SBN2020R-120 |
120 |
60 |
83.1 |
72.8 |
52.8 |
－ |
20 |
32 |
43.5 |
35 |
35 |
M10 |
|
HSK63T-SBN2020L-120 |
120 |
60 |
83.1 |
72.8 |
52.8 |
－ |
20 |
32 |
43.5 |
35 |
35 |
M10 |
|
HSK63T-SBN2525R-120 |
120 |
70 |
85.2 |
70.8 |
45.8 |
90 |
25 |
32 |
53 |
39 |
39 |
M12 |
|
HSK63T-SBN2525L-120 |
120 |
70 |
85.2 |
70.8 |
45.8 |
90 |
25 |
32 |
53 |
39 |
39 |
M12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HSK100T-SBN2525R-145 |
145 |
70 |
102.9 |
88.5 |
63.5 |
－ |
25 |
32 |
59 |
43 |
43 |
M12 |
|
HSK100T-SBN2525L-145 |
145 |
70 |
102.9 |
88.5 |
63.5 |
－ |
25 |
32 |
59 |
43 |
43 |
M12 |
|
HSK100T-SBN3232R-150 |
150 |
85 |
109.9 |
89 |
59 |
－ |
32 |
37 |
68.5 |
48 |
43 |
M14 |
|
HSK100T-SBN3232L-150 |
150 |
85 |
109.9 |
89 |
59 |
－ |
32 |
37 |
68.5 |
48 |
43 |
M14 |
There are many tool holder manufacturers, but we are one of the best choices for you.
Personne à contacter : Tools Bright, +86 534 8127588
