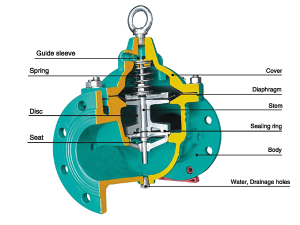

Hydraulic Non-Slam Check Valve
Quantité : 1pc Prix : US $1 - 3,000 / Set
Basic Information of the no slam check valve
This non slam valve prevents backflow of media and reduces water hammer to achieve the safe and quiet effect.
Features
1. Small fluid resistance, large flow;
2. Automatic control using medium energy;
3. Prevent water hammer phenomenon;
4. Slowly-closing silencing.
Principle

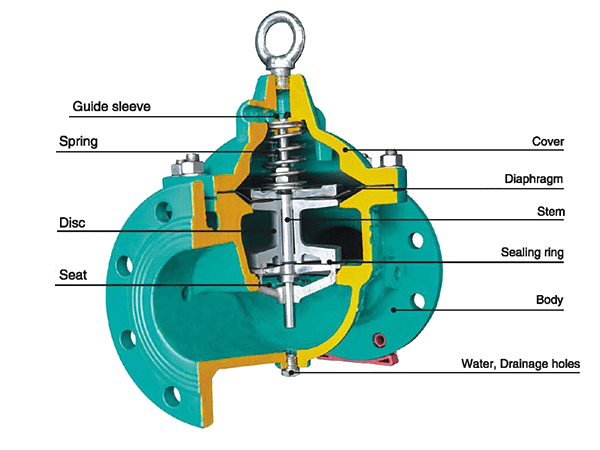

When the pipe supplies water from the inlet end of the valve, the water from the needle and one-way valve enters the valve cover control room and then is discharged downstream through the ball. Due to the small opening of the needle valve, the discharge speed of the control room is greater than that of the inlet to replenish water, thus reducing the pressure in the control room. The inlet pressure acting under the main valve disc all the time lifts the main valve disc, thereby opening the main valve disc and supplying water downstream. When the pipeline stops supplying water, the downstream water begins to flow back. Due to the effect of the one-way valve, the backflow water cannot flow out after entering the valve cover control room through the ball valve. As a result, the pressure of the valve cover control room increases gradually and the main valve disc is closed tightly.
Installation and Commissioning
Needle valve and ball valve adjust together to get the best opening or closing speed. For specific use, please consult ZECO Valve Group. ZECO are one of the most professional non slam check valve manufacturers in China.
Product scope , Standards & Materials
Size Range: 2"~24"
Pressure Rating: 10bar ~ 25bar
Face to Face Dimensions: AMSE B16.10, EN558-1
Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2
Coating: Fusion Bonded Epoxy Coating
Inspection and Test: ISO 5208 / EN 12226-2
ZECO is one of the most professional china check valve manufacturers , and we have been devoted to produce control valve china for many years. If you want to know more details or want a quotation, just feel free to contact us!
