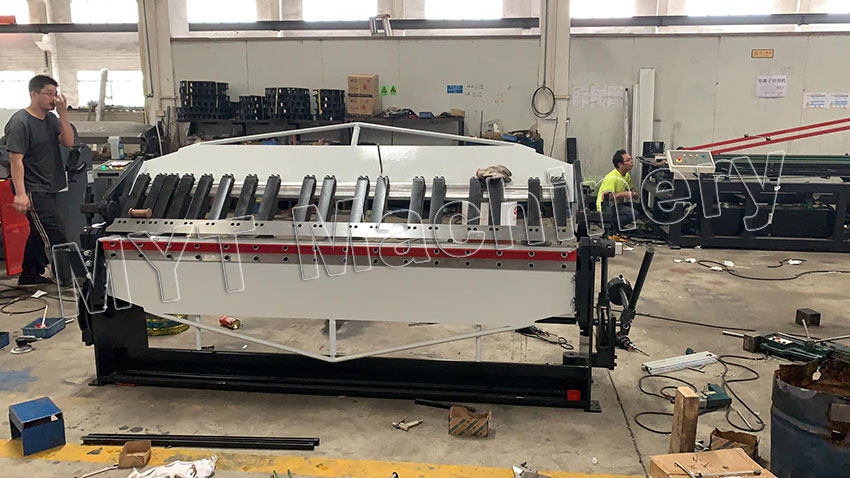

Hydraulic Pan Brake Folder

Hydraulic pan brake folder tool is full welded-steel plate construction. After vibration aging treatment. The deformation is minor so that the accuracy can be ensured.

The machine is hydraulically powered. It is low energy consumption, easy to maintain and durable in use. Upper acting die is sub-portfolio with the open height up to 110mm and suitable for producing disk,box-like workpieces.

The bending angle and back gauge are controlled by the numerical control system, rapidly and accurately. The machine also can be installed CNC system according to client requirements.

Hydraulic Pan Brake Folder Features

Heavy-duty steel fabricated frame provides accurate bends;

Roving foot pedal incorporated control for maximum flexibility;

Side safety fence and photo-electrical guards;

Hydraulic operated clamping and bending beam;

Section clamps suitable for producing disk, box, etc;

Hydraulic and electric overload production system;

Open height up to 110mm;

Folding angle from 0 to 120°;

Manual adjustment for folding angle;

Includes rear 500mm manual back gauge;

Quick action beam adjustment for varying material thickness;

Hydraulic Pan Brake Folder Specifications

1. Up to 4000 mm folding length available - Capacity 4.0 to 6.0 mm available

2. The high bending angle of 0-135° - Up to 145mm depth of box bent - Up to 150mm lift of clamping beam

3. 24V control wiring – segmented folding tools made from hardened material maximizing the life

4. Instruction, Hydraulic, and Electrical Manuals – CE Marked

Hydraulic Pan Brake Folder Technical Parameters

MYT company has over 15 years of manufacturing and exporting experience in HVAC auto duct line,any needs in this aspect,please contact us!
