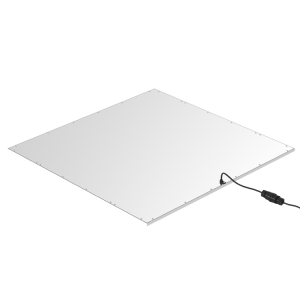

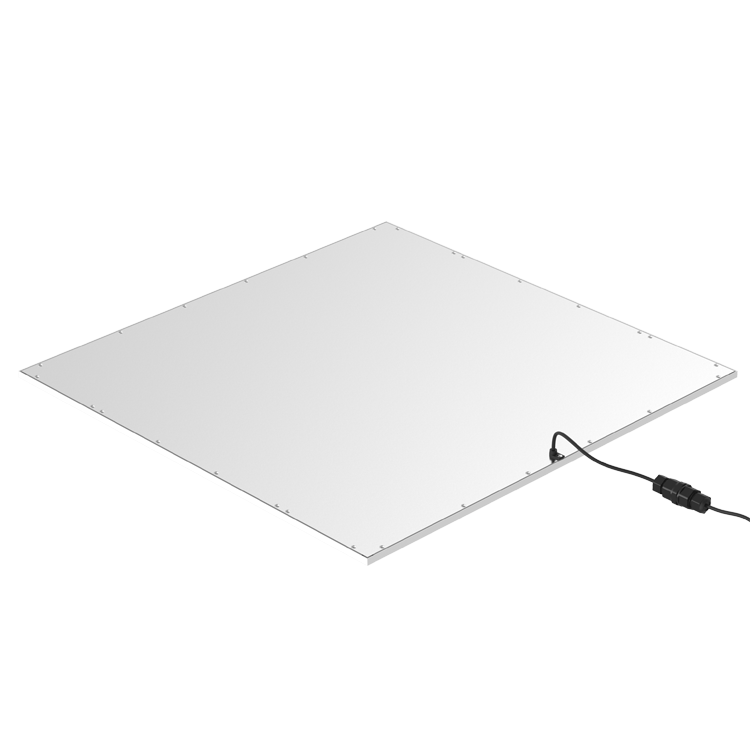

IP65 Waterproof Panel Light
Quantité : according Prix : 10-100USD
Can reach IP65 waterproof grade.
AL6063 aluminum housing
Flat frame design,without any gap at 4 corners.
Using PMMA light guide plate,up to 90% light transmittance
Features
- Adopt IP65 waterproof power supply and connector,the panel light can reach IP65 waterproof grade.
2. AL6063 aluminum housing,13mm thickness,very stronge stuctrure,not easy to bend during using.
3. Flat frame design,without any gap at 4 corners.
4. Using PMMA light guide plate,up to 90% light transmittance,long life time up to 50,000 hours.
5. Bending back cover design to prevent light leakage from back side.
6. Special waterproof foem installed at the front side between aluminum housing and diffuser,also at the back side between the back cover and LGP,to achieve the waterproof effect.
7. Three installation types: Recessed,surface and suspendent.
Parameter
Model |
CCT |
Lumen (lm±10%) |
LED TYPE |
Power (±10%) |
Input voltage |
CRI |
PF Value |
Protection grade |
18W |
6000-6500K |
1656 |
4014 |
18W |
100-240V 50/60Hz |
≥80 |
>0.9 |
IP65 |
IP65 Waterproof Panel Light 18W |
3800-4200K |
1656 |
||||||
IP65 Waterproof Panel Light 18W |
2800-3200K |
1476 |
||||||
IP65 Waterproof Panel Light 24W |
6000-6500K |
2184 |
4014 |
24W |
100-240V 50/60Hz |
≥80 |
>0.9 |
IP65 |
IP65 Waterproof Panel Light 24W |
3800-4200K |
2184 |
||||||
IP65 Waterproof Panel Light 24W |
2800-3200K |
1968 |
||||||
IP65 Waterproof Panel Light 40W |
6000-6500K |
4000 |
4014 |
40W |
100-240V 50/60Hz |
≥80 |
>0.9 |
IP65 |
IP65 Waterproof Panel Light 40W |
3800-4200K |
4000 |
||||||
IP65 Waterproof Panel Light 40W |
2800-3200K |
3600 |
||||||
IP65 Waterproof Panel Light 40W |
6000-6500K |
4000 |
4014 |
40W |
100-240V 50/60Hz |
≥80 |
>0.9 |
IP65 |
IP65 Waterproof Panel Light 40W |
3800-4200K |
4000 |
||||||
IP65 Waterproof Panel Light 40W |
2800-3200K |
3600 |
Dimensions(Unit: mm/inch):
Download
Name |
Update date |
Document |
Download |
Specification of IP65 Waterproof Panel Light |
2019.10.29 |
1.45MB |
|
