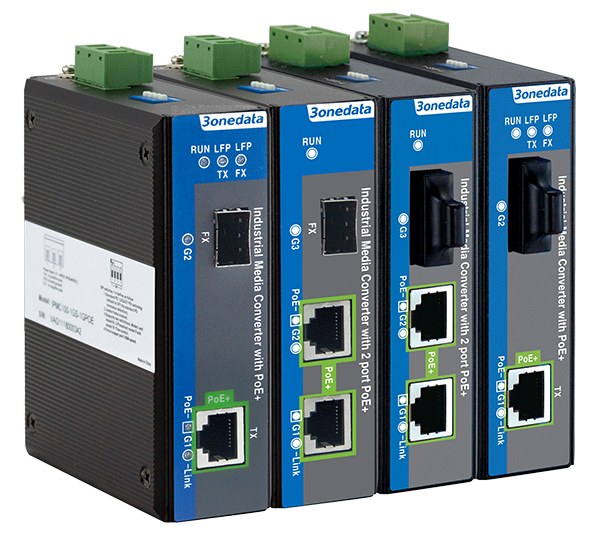

IPMC100 Series

IPMC100 Series

2/3-port Full Gigabit Unmanaged Industrial 2 Port PoE Media Converter

Support 1 Gigabit fiber port or SFP slot optional, 1/2 Gigabit PoE copper ports optional

Maximum power consumption of single port PoE is 30W

PoE provides power supply to powered device via Ethernet, which can reduce the cable connection of powered device

Support input voltage 48VDC

Support -40~80℃ wide temperature operation

3onedata PoE Ethernet Switches 2 Port Outdoor Overview

IPMC100 series are 2/3-port full Gigabit unmanaged industrial PoE media 3onedata converter. PoE power supply conforms to IEEE 802.3af/at protocol standard. This series include four types of products and provide Gigabit copper port, Gigabit fiber port, Gigabit SFP slot and Gigabit PoE copper port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.

Design of DIP switch can realize the switching of PoE power supply modes of standard PD and non-standard PD, Flow Control, Jumbo Frame, RJ45 with the specified speed of 100M. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
