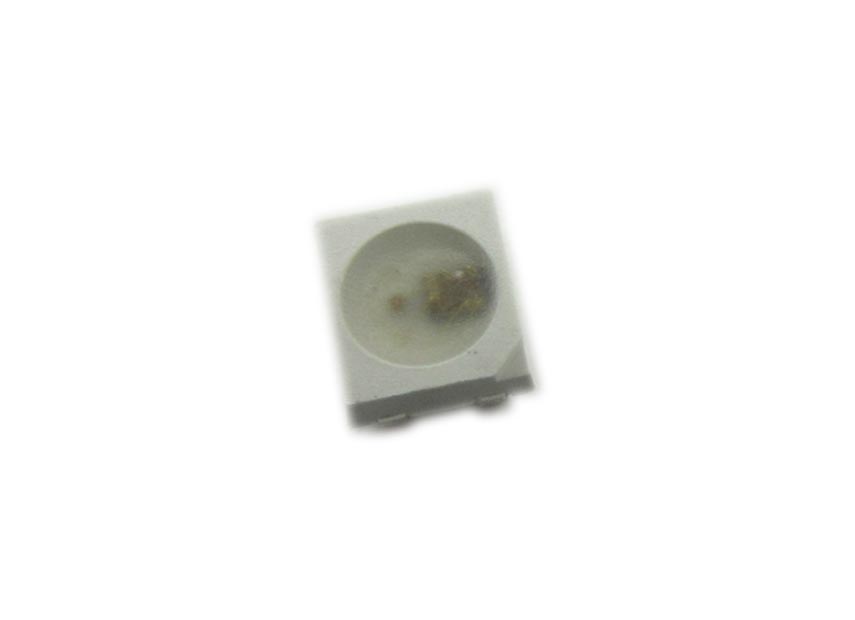

Jercio SK6805-2427 SMD LED (use sk6812 IC, can replace ws2812b, ws2813)
. Product Overview :
SK6805-2427 is a smart LED control circuit and light emitting circuit in one controlled LED source,
which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the
pixels are contained within the intelligent digital interface input. The output is driven by patented
PWM technology,
control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit,
and a high precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted
from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After
an internal data latch, the remaining data is passed through the internal amplification circuit and
sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using
automatic shaping forwarding technology makes the number of cascaded pixels without signal
transmission only limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving), high
brightness, scattering angle, good consistency, low power, and long life. The control circuit is
integrated in the LED above.
