KRV 52 PP Cam Follower
Specifications of KRV 52 PP Cam Follower
|
Designation |
|
|
KRV52PP |
|
(Mass)m≈g |
|
|
463 |
|

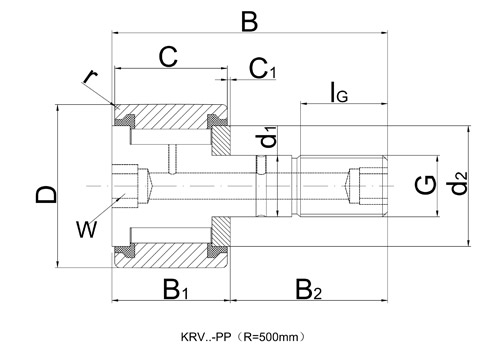

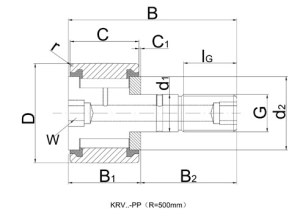

Dimensions |
D |
|
52 |
|
d1 h7 |
|
20 |
|
|
B |
|
66 |
|
|
B1 max |
|
25.6 |
|
|
B2 |
|
40.5 |
|
|
B3 |
|
9 |
|
|
C |
|
24 |
|
|
C1 |
|
0.8 |
|
|
r min |
|
1 |
|
|
d2 |
|
36.5 |
|
|
d3 |
|
4 |
|
|
G |
|
M20X1.5 |
|
|
LG |
|
21 |
|
|
W2) |
|
10 |
|
|
Eccentric sleeve |
de h9 |
- |
|
|
|
Be |
- |
|
|
|
e |
- |
|
|
Grease fitting |
|
NIPA2X7.5 |
|
|
Tighthening torque MA [Nm] |
|
|
120 |
|
Basic load rating |
Basic dynamic load rating Crw [N] |
|
22100 |
|
|
Basic static load rating Corw [N] |
|
47800 |
|
Fatigue load limit Curw [N] |
|
|
6650 |
|
Rotating speed nDG [min-1] |
|
|
1300 |
