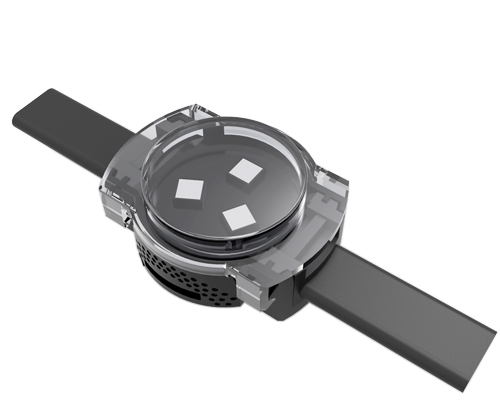

LED Pixel Light EXC-P33GP

EXC-P33GP1 full-color series is a full-color LED series string LED pixel, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-P33GP pixel is a separate 8bit/16bit grade grayscale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.

Specification Optical Parameters of LED Pixel String Lights 1W EXC-P33GP

LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

Color: RGB, RGB+W, W，etc

Beam Angle: 120degree, Open beam, and other angles optional

Source Life: 50,000h

Electrical Parameters of LED Pixel Light 1W EXC-P33GP

Working Voltage: DC12/15V

Rated Power: Maximum: 0.9W/1W

Control Parameters of LED Pixel Light 1W EXC-P33GP

Control Method: DMX512/On Off

Gray Scale: 8Bits/16Bits

Control System: EXC-ALL the lights control system

Structural Parameters of LED Pixel Light 1W EXC-P33GP

Shell Material: PC

Surface Color: Black&White, Other colors optional

Structure Size: 40.5mm x 32.5mm x 17mm (L x W x H, exclude Mounting Bracket)

Total Weight: 24g

Environmental Parameters of LED Pixel Light 1W EXC-P33GP

Working Temperature: -40°C to 50°C

Storage Temperature: -40°C to 65°C

Protection rating: IP66

Application environment: Outdoor

LED light factory in China has more than 1000 application cases in the world, selling well in more than 50 countries and regions. EXC-LED has contributed to the 7th CISM Military World Games in Wuhan, the SCO Summit in Qingdao, the BRICS Summit in Xiamen, the G20 Summit in Hangzhou,the countdown to the 40th Anniversary Celebrations of Shenzhen Reform and Opening-up and other high-level visual services with many times.
