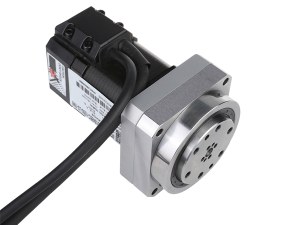

LFS Ultra Flat Harmonic Gearbox
Quantité : 2000sets/m Prix : 200-588USD
LFS series- this harmonic actuator is a combination product that is lightweight, ultra-flat. It uses cross-roller bearing.
LFS integrated series-Combined strain wave reducer with high performance and small motor, with highest input characteristics under the same gear conditions.
Applications of LFS Harmonic Gearbox/Actuator:
Industrial robots;
Service robots;
Medical devices;
Automation and Special Equipment.
Features of LFS Harmonic Actuator
Ultra flat
Light weight
Small size
Specification of LFS Ultra-flat Harmonic Gearbox
Rated Parameter Table of LFS Series Flat Gearbox
odel |
Reduction ratio |
Rated torque at 2000r/min input |
Permissible peak torque at start and stop |
Permissible maximum value for average load torque |
Permissible maximum momentary torque |
Permissible maximum input rotational speed(grease) |
Permissible average input rotational speed(grease) |
Backlash |
Design life |
||||
Nm |
Kgfm |
Nm |
Kgfm |
Nm |
Kgfm |
Nm |
Kgfm |
r/min |
r/min |
Arc sec |
Hour |
||
11 |
50 |
3.5 |
0.4 |
8.3 |
0.9 |
5.5 |
0.6 |
17 |
1.7 |
8500 |
3000 |
≤20 |
10000 |
80 |
5 |
0.5 |
11 |
1.1 |
8.9 |
0.9 |
25 |
2.5 |
|||||
100 |
5 |
0.5 |
11 |
1.1 |
8.9 |
0.9 |
25 |
2.5 |
|||||
14 |
50 |
5.4 |
0.6 |
18 |
1.8 |
6.9 |
0.7 |
35 |
3.6 |
8500 |
3000 |
≤20 |
10000 |
80 |
7.8 |
0.8 |
28 |
2.9 |
11 |
1.1 |
54 |
5.5 |
|||||
100 |
7.8 |
0.8 |
28 |
2.9 |
11 |
1.1 |
54 |
5.5 |
Flat Gearbox Drawings
Outer Dimension Drawing of LFS Harmonic Actuator
As one of the planetary gear reducer manufacturers, we provide strain wave gear box, strain wave gearbox, harmonic gearbox design, harmonic drive actuator, nema 17 harmonic drive and etc. Want to know more? Contact us.
Personne à contacter : Zhang Sky , 0575 89303973
