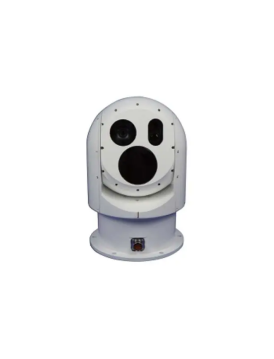

Marine Surveillance System TMG640-C129T100-L5
Reconnaissance, targeting, search and rescue, anti-smuggling, evidence gathering, security, environment inspection, navigation assistance, and so on are all examples of military operations. A variety of unmanned vehicles and law enforcement vessels can be fitted with this product.
Specifications of Marine CCTV Camera TMG640-C129T100-L5
|
Visible Camera |
||
|
Detector |
1/2.8 inches |
1/1.8 inches |
|
Lens |
30×continuous zoom( 4.3mm~129mm) |
38×continuous zoom (8mm~300mm) |
|
Resolution |
1080P（1920×1080） |
1080P（1920×1080） |
|
IR camera |
||
|
Detector |
Uncooled LWIR detector (8~14um) |
Uncooled LWIR detector (8~14um) |
|
Resolution |
640×512 |
640X512 |
|
Focal length |
25mm~100mm continuous zoom |
25mm~75mm continuous zoom |
|
Laser Sensor (Eye-safe Laser class-Ⅰ) |
||
|
Laser Ranging |
Distance≥5km Accuracy：±5m |
|
|
Gyro-stabilized PT |
||
|
Accuracy |
≤0.3mrad（1σ） |
|
|
Azimuth Range |
Nx360° |
|
|
Elevation Range |
-30°~+90° |
|
|
El angular Velocity |
≥80°/s |
|
|
Az angular Velocity |
≥80°/s |
|
|
El angular Acceleration |
≥200°/s² |
|
|
Az angular Acceleration |
≥200°/s² |
|
|
Electrical Interface |
||
|
Video Output |
HD-SDI/ Network HD Video (optional) |
|
|
Communication |
RS422/ Network interface |
|
|
Power |
||
|
External Power |
20~30V DC |
|
|
Power Consumption |
≤300W，peak≤600W |
|
|
Environmental |
||
|
Operating Temp |
-20℃～+65℃/-40℃～+65℃ |
|
|
Storage Temp |
-40℃～+85℃ |
|
|
Image Tracking |
||
|
Integration |
Built-in |
|
|
Function |
HD Auto Tracking /Auto Target Recognition（optional） |
|
|
General |
||
|
Weight |
≤20kg |
|
|
Dimension |
Φ280mm×430mm |
|
Features of Marine System TMG640-C129T100-L5
Combined multi-optical sensors
High-precision platform with gyro stabilization
Add HD Auto Tracking
Spray that resists mildew, moisture, and salt and is made to work in tough marine conditions
As one of thermal imaging camera suppliers, we can offer sorts of thermal imaging device for sale, if you have needs, please contact us.
