Metal slitting line machine-shsinopower.com

Quantité : 1   Prix : 105000USD

SP(0.2-2.0) Series nonferrous metal / Steel slitting line is applicable to coils of various specifications. It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.
This slitting line machine is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitting machine widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc. This metal slitting line consists of loading cart, uncoiler, slitter, scrap winder, cropping shear, tension controller and coil recoiler, etc. Loop bridge, pinch and deviation corrector are equipped between each machine. This steel coil slitting is a integration of mechanical, electrical, hydraulic and pneumatic technology.

1. Technical Parameters of metal slitting line

Model Thickness Coil Width Coil Weight Coil O.D Coil O.D Strip
Width		 Number
of Strip		 Slitting Accuracy Line Speed Coil Material
mm mm tons mm mm mm pcs mm m/min
SP(0.2-2) 0.3-2.0 400-1600 ≤20 508 ≤2000 ≥30 8~20 ±0.15 0~150 δs≤230N/2,
Cold-rolled Coil,
Hot-rolled Coil,
Stainless Coil,
Galvanized Coil,
Aluminum Coil,
Copper Coil,
etc
SP(0.3-3) 0.3-3.0 400-1600 ≤20 508,610 ≤2000 ≥30 8~20 ±0.15 0~120
SP(0.4-4) 0.4-4 500-2200 ≤25 508,610,760 ≤2200 ≥30 8~20 ±0.25 0~100
SP(1-6) 1-6 500-2200 ≤25 508,610,760 ≤2200 ≥50 5~15 ±0.25 0-80
SP(1-8) 2-8 500-2200 ≤25 508,610,760 ≤2200 ≥50 5~12 ±0.25 0-60
SP(2-10) 2-10 500-2200 ≤35 508,610,760 ≤2200 ≥50 3~10 ±0.5 0-60
SP(2-12) 2-12 500-2200 ≤35 610,760,820 ≤2200 ≥80 3~10 ±0.5 0-40
SP(3-14) 3-14 500-2200 ≤35 610,760,820 ≤2200 ≥80 2~8 ±0.1 0-40
SP(3-16) 3-16 500-2300 ≤35 610,760,820 ≤2500 ≥100 2~8 ±0.2 0-40
SP(5-20) 5-20 500-2300 ≤35 610,760,820 ≤2500 ≥100 2~8 ±0.2 0-20

2. Process Flow of slitting line machine

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control

slitting machine, slitter machine

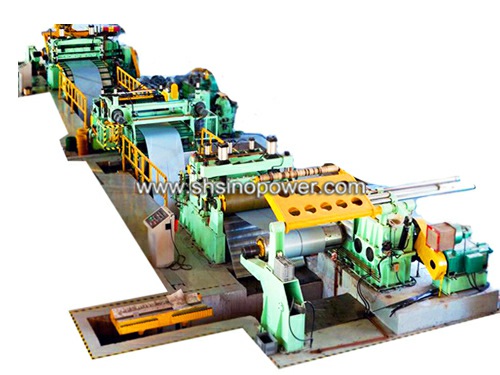

steel coil slitting machine line

3. Photos of slitting line

Main Machine 1: Uncoileruncoiling uncoiler

Main Machine 2: Leveling machineleveling leveler

Main Machine 3: Slitting machinesslitting slitter

Main Machine 4: Recoiler machinerecoiler, rewinder

Workshop of whole slitting linewhole metal coil slitting machine line

slitting line,slitting line machine,metal slitting line,

4. Final product by metal slitting line

steel coil slitting final product

Localisation : EAST TAILI RD., 200123 Shanghai,
Personne à contacter : XU SHAWN, +8615000437616
