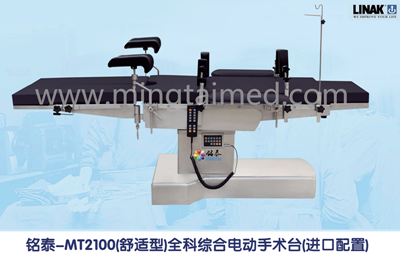

Mingtai MT2100 comfortable model electric motor operation table

Technical parameters Length 2000mm±50mm Width 555mm Lowest and highest table height (750-1000) ± 50mm Lowest table height(optional) 600mm Longitudinal motion 400±50mm Table lifting height(optional) (200-450)mm Forward/Backward tilt ≥32° Left/right tilt: ≥22° Head board up/down ≥90° Waist bridge elevator ≥130mm Leg board down ≥90° Leg board eation ≥90° Back board Up: ≥80°, down: ≥40° Power AC 220V 50Hz Input power 500VA Unique advantage Multi-function 8 electro-motor surgical table Imported LINAK linear motor from Denmark Table body is SUS 304 stainless steel from Korea Superior wide of operating table: 555mm Double control system, built back up battery Electric braking and electric kidney bridge Taiwan high precision linear translation guide Double motors rise back board, “T” shape base Overall memory sponge + SBR material mattress Head board HS system Main feature: 1. Longitudinal motion function: imported slideway system makes it easier, the max longitudinal scope is 400±50mm, and it also can guarantee enough space under the table bed for C-arm's X-ray transillumination and other special surgery 2. Material is easy to clean: table bed material is stainless steel, with high anti-pollution after matte process. Fastcolours and constant form after long time using. Smooth streamline base design is anti-dust, meeting the requirement of cleanliness in laminar flow operating room 3. Safety and steady: oversized high quality truckle can make sure operation table's excellent steady and movement; brake pedal in front of the base can guarantee operation table stable fixed. 4. Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable 5. Updated: reserved quick connect slideway, different accessories can be configured according to different surgery. Optional Orthopedics Tractor and Skull Operating Rack can be configured to meet orthopedics and brain surgery 6. HS system: it is convenient for doctor adjust surgery position and offer a comfortable, natural sleeping position for patients. 7. Double control system: hand wired remote control and control panel on the table board, easy for doctor operating it, and can accomplish the prospective position by continuous pressing button. 8. Safety lock function can avoid the misoperation 9. Transillumination: head board, back board, hip board, kidney elevator are made of Bakelite material, high Transillumination for X-ray, meeting the need of taking X-ray photo during operation. X-ray cassette can be loaded through X-ray cassette slideway. 10. Leg board can be dismantled easily; gas spring assistance system makes it easily for adjusting operate position and moving flexible and stable. 11. Comfortable: one-step molding polyurethane foam mattress, smooth, moistureproof, sealing up, antistatic, corrosion resisting, soft, comfortable, elasticity, can eliminate patients' press point. 12. Continuous operation: all set imported system and electric control system can guarantee the operation table's steady during operation, low noise and blemish reduced the operation risk. Built-in high quality battery can works one month after one time charging 13. Different operation position: Six section design for table board, easy for operate, stable working, can meet different operation position requirement perfectly.
