Motorized Control Valve
Basic information of Motorized Control Valve
This valve can automatically adjust the flow rate of pipelines, the water control of air conditioning ventilation equipment, the water control of heating equipment. Dof960 series of cases
Features of Motorized Control Valve
1. The actuator is made of the cast aluminum bracket and plastic shell with small volume and light weight;
2. Transmission gear adopts metal gear, which greatly improves the service life of the drive;
3. Low power consumption, high output power, low noise;
4. Suitable for various control signals: increment (floating point), voltage (0-10v), current (4-20ma).
Principle of Motorized Control Valve
The motorized control valve can be used with the thermostat, the motor is controlled by a motorized control valve's actuator, the valve open or close, cold water or hot water pipe make or break, again through the fan coil air supply, so as to realize the automatic temperature adjustment. When you need to work, provided by a thermostat open signal to make the motorized control valve connected to the ac power and action. Open valve, chilled water or hot water into the fan coil units, to provide room air conditioning or heating, when the room temperature reaches the thermostat set point, the thermostat to the motorized control valve, reset spring to close the valve, thus cutting into water fan coil units, through the valve closed and open, make the room temperature always stay in the temperature control setting temperature range.
Installation and Commissioning of Motorized Control Valve

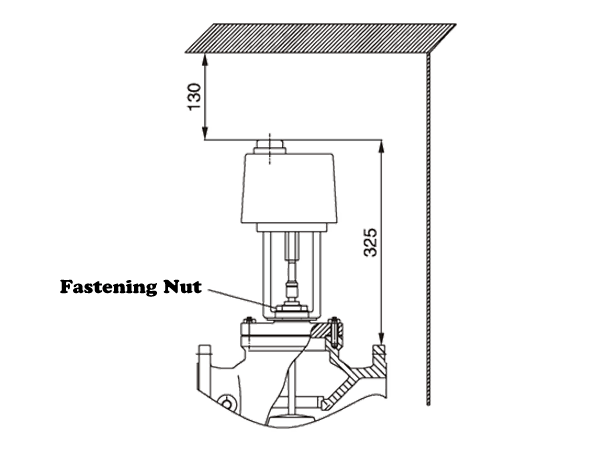

When installing, vertical installation is preferred and sufficient space should be left to repair and remove the drive. The voltage regulator controls the opening stroke by 0-10vdc voltage, and the current regulator controls the opening stroke by 4-20ma current. The actuator is protected and cannot be covered by insulation material to prevent leakage and damage internal parts and motors. For specific use, please consult ZECO Valve Group.
Part |
Material |
Standard |
Body |
Ductile Iron |
EN 1563/DIN 1693 |
Bonnet |
Ductile Iron |
EN 1563/DIN 1693 |
Trim |
Stainless Steel 431 |
EN10088-1/ASTM A959 |
Seat |
Stainless Steel 431 |
EN10088-1/ASTM A959 |
Diaphragm |
EPDM / NBR |
ISO 4633 |
Electric Actuator |
Honeywell |
UL94-5V |
For the materials options not listed, consult factory. ZECO manufactures valves in more than 50 different alloys. |
Product scope, Standards & Materials of Motorized Control Valve
Size Range: 2"~12"
Pressure Rating: 10bar ~ 25bar
Face to Face Dimensions: AMSE B16.10, EN558-1
Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2
Coating: Fusion Bonded Epoxy Coating
Inspection and Test: ISO 5208 / EN 12226-2
Zhengfeng Valve Group Co., Ltd. is a professional china gate valve manufacturer. We provide Control Valve, Balancing Valve, check valve and so on. Want to know about motorized control valve price? Please contact us.
