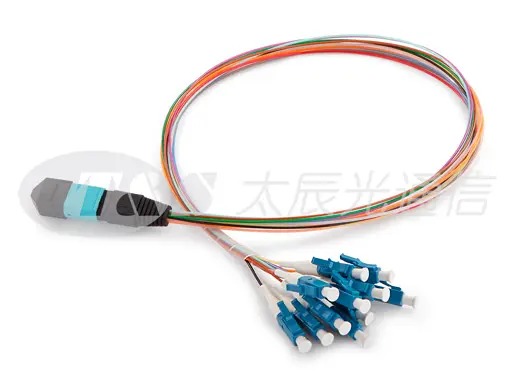

MTP®/MPO Hydra Cable
MPO/MTP® Hydra cable assemblies is deployed inside plug and play cassette modules. It is used for multi-fiber to single-fiber splitting out interconnects. This solution is a 12-colored 0.9mm cable utilizing an MPO/MTP® connector on one end and generic connectors (such as LC, SC, FC, etc.) on the other end. They are available for purchase as a bundle with plug and play modules, MPO/MTP® Adapter Plates, and other solutions. It is fully configurable, available in 8/12/16/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and Single-mode fiber types.
Features of MTP®/MPO Hydra Fiber Cable
Low loss performance
Fiber count available in 8~24
Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request
Option for LSZH, PVC or Hytrel loose tube
100% factory terminated and tested
Applications of MTP®/MPO Hydra Cable
Data Center Interconnect
Backbone Installations
Telecommunication Networks
Broadband/CATV Networks
LAN/WAN Premises
Standards Compliance of MTP®/MPO Hydra Cable
TIA/EIA-568.3-D and ISO/IEC 11801
IEC-61754 & EIA/TIA-604-5
NFPA 262 or IEC 60332
Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC
EN 50575
Comply with GR-1435-CORE, GR-2866-CORE, GR-326-CORE
Specifications of MTP®/MPO Hydra Cable
General Specification
Technical Specification
Construction |
Description |
||||||
Fiber Count |
8~24 Fibers |
||||||
Fiber Mode |
Single mode: OS2/G657 9/125um |
||||||
Fiber Brand |
SMF-28® Ultra optical fiber Corning ClearCurve® multimode fiber |
||||||
Cable Jacket Ratings |
PVC, LSZH, Hytrel |
||||||
Cable Jacket Color |
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua |
||||||
Polarity |
A/B/C or Customized |
||||||
MTP/ MPO |
Ferrule |
12F/16F/ 24F |
|||||
Ferrule Brand |
US Conec, HANKUSAN, Nissin |
||||||
Connector Type |
MTP Female, Male; MPO Female, Male |
||||||
Connector Brand |
US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO |
||||||
Connector Color |
Ferrule |
SM(APC) |
SM(PC) |
OM3 |
OM4 |
or Customized |
|
Low loss |
Yellow |
Yellow |
Aqua |
Magenta |
|||
Standard |
Green |
Blue |
Aqua |
Magenta |
|||
Boot Color |
Green/Black/ or Customized |
||||||
Single-fiber connector |
LC, SC, FC, etc. |
||||||
Operating Temperature |
-20°C to +70°C |
||||||
Storage Temperature |
-40°C to +85°C |
As a reliable optic connector supplier, we will do our best to meet all the needs of customers.
