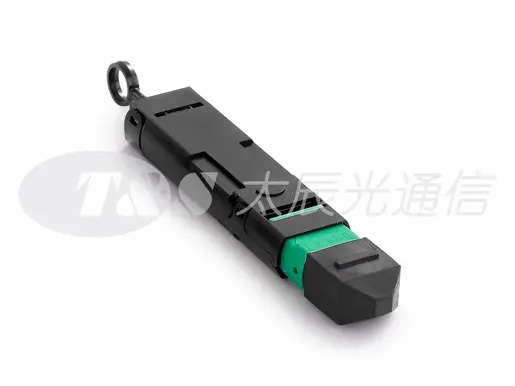

MTP®/MPO LOOPBACK Adapter
T & S MTP® / MPO fiber loop is a device used for parallel connection tests and an aging test of optical communication equipment. Well-designed by engineers at T&S, our MTP®/MPO loopback adapter can transmit the optical network signal from the transmitter to the receiver, thereby forming the optical signal receiving and transmitting loop. MTP® / MPO fiber loop provides a fast and efficient way to test the transmission capacity and receiving sensitivity of optical network equipment. T & S MTP® / MPO fiber loop has 8F, 12F, 16F, 24F, 32F channels with low loss and conventional loss, single-mode and multi-mode options. Our MTP®/MPO loopback adapter is now widely used for optical network equipment self-test, network diagnosis, and test, etc.
Features of MPO®/MTP Loopback Adapter
Available in various polarity and fiber types
Meet TIA/EIA and IEC interpretability standards
RoHS compliant
Customized attenuation available
Available with or without Pull tabs
8F , 12F, and 24fF available
Specifications of MTP®/MPO Loopback
General Specification
Technical Specification
Construction |
Description |
|||||
Fiber Count |
2fibers for duplex type; 2-24fibers for multi-fiber connector |
|||||
Fiber Mode |
Single mode: OS2/G657 9/125um |
|||||
Fiber Brand |
Corning SMF-28® Ultra optical fiber Corning ClearCurve® multimode fiber |
|||||
Cable Jacket Ratings |
Low Smoke Zero Halogen (LSZH) Plenum (OFNP) |
|||||
Cable Jacket Color |
OS2/G657: Yellow OM1&OM2: Orange |
|||||
Polarity |
Type A, Type B, Type C (TIA-568.3-D) or Customized |
|||||
Connector Type |
SC LC MPO MTP |
|||||
Connector Color (SC LC) |
|
SM(APC) |
SM(PC) |
OM3 |
OM4 |
or customized |
|
Green |
Blue |
Aqua |
Magenta/Aqua |
||
Connector Color (MPO MTP) |
|
SM(APC) |
SM(PC) |
OM3 |
OM4 |
or customized |
Low Loss |
Yellow |
Yellow |
Aqua |
Magenta/Aqua |
||
Standard |
Green |
Blue |
Aqua |
Magenta/Aqua |
||
Loopback housing color |
black |
|||||
Operating Temperature |
-20°C to + 70°C |
|||||
Storage Temperature |
-40°C to + 85°C |
As a reliable fiber supplier, we will do our best to meet all the needs of customers.
