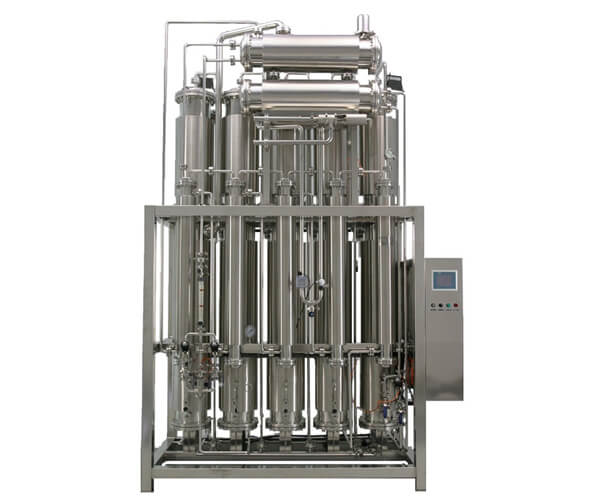

MULTI-EFFECT DISTILLER
Multiple Effect Distillation
The water for injection preparation system is a key GMP system. Multi effect distilled water machine is the key equipment of the most widely used WFI preparation system at present. BIOCELL's multi effect water distiller machine adopts high temperature and high pressure operation to ensure stable production of pyrogen free water for injection. The water for injection produced by the multi column distillation plant machine fully meets the requirements for water for injection in the current American Pharmacopoeia, European Pharmacopoeia, Japanese Pharmacopoeia and Chinese Pharmacopoeia.
Specification of Multi-Effect Distiller
Specification |
Output of Distilled Water (L/h) |
Steam Consumption (kg/h) |
Purifed Water Consumption (L/h) |
Cooling Water Consumption (L/h) |
Overall Dimension LxWxH (mm) |
LD (S) 100-4 |
>100 |
30 |
120 |
50 |
900x700x2000 |
LD (S) 200-4 |
>200 |
60 |
240 |
100 |
1000x800x2000 |
LD (S) 300-4 |
>300 |
90 |
360 |
150 |
1100x800x2200 |
LD (S) 500-4 |
>500 |
150 |
600 |
250 |
1400x900x2500 |
LD (S) 500-5 |
>500 |
130 |
600 |
100 |
1600x900x2500 |
LD (S) 1000-5 |
>1000 |
240 |
1100 |
200 |
1700x1100x3100 |
LD (S) 1000-6 |
>1000 |
190 |
1100 |
20 |
2100x1100x3100 |
LD (S) 1500-5 |
>1500 |
350 |
1670 |
290 |
2700x1100x3700 |
LD (S) 1500-6 |
>1500 |
290 |
1670 |
90 |
3200x1100x3700 |
LD (S) 2000-5 |
>2000 |
440 |
2200 |
210 |
3200x1100x4000 |
LD (S) 2000-6 |
>2000 |
390 |
2200 |
110 |
3600xI100x4000 |
LD (S) 3000-6 |
>3000 |
810 |
3300 |
150 |
4000x1200x4100 |
LD (S) 4000-6 |
>4000 |
880 |
4400 |
200 |
4300x1300x4200 |
LD (S) 5000-6 |
>5000 |
980 |
5500 |
250 |
4600x1400x4200 |
LD (S) 10000-6 |
> 10000 |
2250 |
11000 |
450 |
4900x1600x4800 |
The working principle of the multi effect distilled water machine is that the fully heated raw water is evaporated and condensed by multi effect to remove non condensable gas and impurities, so as to obtain high-purity distilled water. To ensure the quality of distilled water, the raw water must be pretreated. Because of multiple effect evaporation, the heat is fully utilized. Each effect evaporator adopts the principle of vertical tube type falling liquid film evaporation, plus a special structure of feed water distributor, so that the feed water can form a film and flow evenly in the tube. The multi effect distilled water machine eliminates the dry wall phenomenon caused by uneven distribution of local feed water, greatly improving the evaporation efficiency. The multi effect distilled water machine has the characteristics of small size, light weight, large water yield, and good water quality stability.
If you want to know more about water purification system pharmaceutical industry, please visit our website.
