Multi Hole & Flat Hole Nylon Cable Gland
Quantité : 130000 pcs Prix : $0.02~$0.40 per piec
The outstanding advantage of the multi-hole cable gland is that the seal can have multiple outlet holes to meet the need of multi-harness cables. The seal has good toughness, can fix the cable, and make the cable gland to be waterproof and dustproof.
Multi Hole & Flat Hole Nylon Cable Gland Specifications
|
Product |
Multiple Holes and Flat Hole Cable Gland |
|
Category |
Plastic Cable Gland |
|
Thread |
MG Thread |
|
Connector Type |
Installable Straight |
|
Locking System/ Mating Style |
Screw |
|
Material |
Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR). |
|
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
|
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent. |
|
IP Rating |
IPX7 |
|
Standard |
UL94 V2 |
|
Additional Description |
With washer and lock nut |
|
Color |
Gray, black cable glands are usually in stock . Other colors can be customized on request |

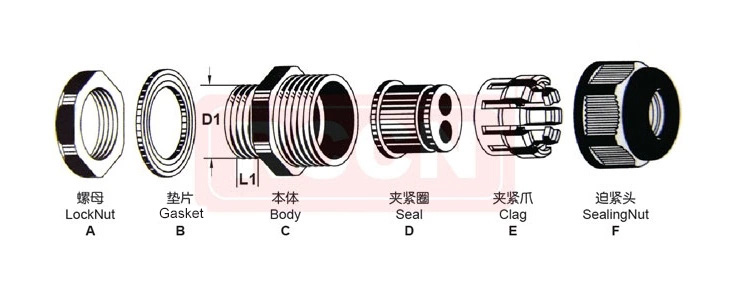

Multi Hole & Flat Hole Nylon Cable Gland Outline and Parameters
|
Seal Holes |
Item No. |
Cable Range (mm) |
Thread OD |
Thread Length L1(mm) |
Spanner Size A & E (mm) |
|
|
MGA12-H2-03 |
1.2-3 |
12 |
8.5 |
18/19 |
|
MGA16-H2-04 |
1.5-4 |
16 |
15 |
22122 |
|
|
MGA20-H2-06 |
3-6 |
20 |
15 |
27/27 |
|
|
MGA22-H2-06 |
3-6 |
22 |
10 |
27/27 |
|
|
MGA25-H2-6.5 |
3-6.5 |
25 |
15 |
33/33 |
|
|
MGA25-H2-08 |
4-8 |
25 |
15 |
33/33 |
|
|
MGA32-H2-10 |
5-10 |
32 |
15 |
41/42 |
|
|
MGA40-H2-13 |
7-13 |
40 |
20 |
50/52 |
|
|
|
GA3/4-H3-08 |
4-8 |
26.441 |
15 |
36/33 |
|
GA1 1/4-H3-11 |
7-11 |
41.91 |
16 |
5752 |
|
|
GA1 1/2-H3-12 |
7-12 |
48 |
22 |
1 |
|
|
GA2-H3-13 |
8-13 |
60 |
25 |
75/75 |
|
|
|
MGA12-H4-2.3 |
1-2.3 |
12 |
8.5 |
18/19 |
|
MGA16-H4-3.2 |
1-3.2 |
16 |
15 |
22/22 |
|
|
MGA20S-H4-04 |
1.5-4 |
20 |
10 |
24/24 |
|
|
MGA20-H4-2.5 |
1-2.5 |
20 |
15 |
27/27 |
|
|
MGA20-H4-3.5 |
1-3.5 |
20 |
15 |
27/27 |
|
|
MGA20-H4-4.5 |
2-4.5 |
20 |
15 |
27/27 |
|
|
MGA22-H4-2.5 |
1-2.5 |
22 |
15 |
27/27 |
|
|
MGA22-H4-3.5 |
1-3.5 |
22 |
15 |
27/27 |
|
|
MGA22-H4-4.5 |
2-4.5 |
22 |
15 |
27127 |
|
|
MGA25-H4-05 |
2-5 |
25 |
15 |
33/33 |
|
|
MGA25-H4-06 |
3-6 |
25 |
15 |
33/33 |
|
|
MGA25-H4-07 |
3-7 |
25 |
15 |
33/33 |
|
|
MGA25-H4-08 |
4-8 |
25 |
15 |
33/33 |
|
|
MGA25-H4-09 |
5-9 |
25 |
15 |
33/33 |
|
|
MGA2-H4-07 |
3-7 |
32 |
15 |
41/42 |
|
|
MGA32-H4-09 |
5-9 |
32 |
15 |
41/42 |
|
|
MGA40-H4-11 |
7-11 |
40 |
20 |
50/52 |
|
|
MGA40-H4-12 |
7-12 |
40 |
20 |
50/52 |
|
|
PGA7-H4-2.3 |
1-2.3 |
12.5 |
8.5 |
17/19 |
|
|
PGA9-H4-2.3 |
1-2.3 |
15.2 |
8.5 |
22/19 |
|
|
PGA11-H4-3.2 |
1-3.2 |
18.6 |
10 |
24/22 |
|
|
PGA13.5-H4-04 |
1.5-4 |
20.4 |
10 |
27/24 |
|
|
PGA16-H4-2.5 |
1-2.5 |
22.5 |
10.8 |
30/27 |
|
|
PGA16-H4-3.5 |
1-3.5 |
22.5 |
10.8 |
30/27 |
|
|
PGA16-H4-4.5 |
2-4.5 |
22.5 |
10.8 |
30/27 |
|
|
PGA21-H4-05 |
2-5 |
28.3 |
12 |
36/33 |
|
|
PGA21-H4-06 |
3-6 |
28.3 |
12 |
36/33 |
|
|
PGA21-H4-07 |
3-7 |
28.3 |
12 |
36/33 |
|
|
PGA21-H4-08 |
4-8 |
28.3 |
12 |
36/33 |
|
|
PGA21-H4-09 |
5-9 |
28.3 |
12 |
36/33 |
|
|
PGA29-H4-07 |
3-7 |
37 |
12 |
46/41 |
|
|
PGA29-H4-09 |
5-9 |
37 |
12 |
46/41 |
|
|
PGA36-H4-11 |
7-11 |
47 |
14 |
57/52 |
|
|
PGA36-H4-12 |
7-12 |
47 |
14 |
57/52 |
|
|
GA1/4-H4-2.3 |
1-2.3 |
13.157 |
8 |
19/19 |
|
|
GA3/8-H4-3.2 |
1-3.2 |
16.662 |
15 |
22/22 |
|
|
GA1/2-H4-2.5 |
1-2.5 |
20.995 |
15 |
27/27 |
|
|
GA1/2-H4-3.5 |
1-3.5 |
20.995 |
15 |
27/27 |
|
|
GA1/2-H4-4.5 |
2-4.5 |
20.995 |
15 |
27/27 |
|
|
GA1/2-H4-05 |
2-5 |
20.995 |
15 |
27/33 |
|
|
GA1/2-H4-06 |
3-6 |
20.995 |
15 |
27/33 |
|
|
GA1/2-H4-07 |
3-7 |
20995 |
15 |
27/33 |
|
|
GA1/2-H4-08 |
4-8 |
20.995 |
15 |
27/33 |
|
|
GA1/2-H4-09 |
5-9 |
20.995 |
15 |
27/33 |
|
|
GA3/4-H4-05 |
2-5 |
26.441 |
15 |
36/33 |
|
|
GA/4-H4-06 |
3-6 |
26.441 |
15 |
36/33 |
|
|
GA3/4-H4-07 |
3-7 |
26.441 |
15 |
36/33 |
|
|
GA3/4-H4-08 |
4-8 |
26.441 |
15 |
36/33 |
|
|
GA3/4-H4-09 |
5-9 |
26.441 |
15 |
36/33 |
|
|
GA1 1/4-H4-11 |
7-11 |
41.91 |
16 |
57/52 |
|
|
GA1 1/4-H4-12 |
7-12 |
41.91 |
16 |
57/52 |
|
|
|
MGA20-H5-03 |
1-3 |
20 |
15 |
27/27 |
|
MGA22-H5-03 |
1-3 |
22 |
10 |
27/27 |
|
|
MGA25-H5-06 |
3-6 |
25 |
15 |
33/33 |
|
|
MGA32-H5-08 |
4-8 |
32 |
15 |
41/42 |
|
|
PGA16-H5-03 |
1-3 |
22.5 |
10.8 |
30/27 |
|
|
PGA21-H5-06 |
3-6 |
28.3 |
12 |
36/33 |
|
|
PGA29-H5-08 |
4-8 |
37 |
12 |
46/41 |
|
|
GA1/2-H5-03 |
1-3 |
20.995 |
15 |
27/27 |
|
|
GA1/2-H5-06 |
3-6 |
20.995 |
15 |
27/33 |
|
|
GA3/4-H5-06 |
3-6 |
26.441 |
15 |
33/33 |
|
|
|
MGA16A-H6-2.1 |
1-2.1 |
16 |
15 |
22/22 |
|
MGA25A-H6-5.3 |
2-5.3 |
25 |
15 |
33/33 |
|
|
MGA32A-H6-5.5 |
2-5.5 |
32 |
15 |
41/42 |
|
|
MGA32A-H6-07 |
3-7 |
32 |
15 |
41/42 |
|
|
MGA63A-H6-12 |
7-12 |
63 |
25 |
75/75 |
|
|
PGA11-H6-2.1 |
1-2.1 |
18.6 |
10 |
24/22 |
|
|
PGA21-H6-5.3 |
2-5.3 |
28.3 |
12 |
36/33 |
|
|
PGA29-H6-5.5 |
2-5.5 |
37 |
12 |
46/41 |
|
|
PGA29-H6-07 |
3-7 |
37 |
12 |
46/41 |
|
|
|
|
|
|
|
|
|
PGA48-H6-12 |
7-12 |
59.3 |
18 |
70/65 |
|
|
GA3/8-H6-2.1 |
1-2.1 |
16.662 |
15 |
22/22 |
|
|
GA1/2-H6-5.3 |
2-5.3 |
20.995 |
15 |
27/33 |
|
|
GA3/4-H6-5.3 |
2-5.3 |
26.441 |
15 |
33/33 |
|
|
GA2-H6-12 |
7-12 |
60 |
25 |
75/75 |
|
|
|
MGA25-H7-4.3 |
2-4.3 |
25 |
15 |
33/33 |
|
PGA21-H7-4.3 |
2-4.3 |
28.3 |
12 |
36/33 |
|
|
GA1/2-H7-4.3 |
2-4.3 |
20.995 |
15 |
27/33 |
|
|
GA3/4-H7-4.3 |
2-4.3 |
26.441 |
15 |
33/33 |
|
|
|
MGA25-H8-04 |
1.5-4 |
25 |
15 |
33/33 |
|
PGA21-H8-04 |
1.5-4 |
28.3 |
12 |
36/33 |
|
|
GA1/2-H8-04 |
1.5-4 |
20.995 |
15 |
27/33 |
|
|
GA3/4-H8-04 |
1.5-4 |
26.441 |
15 |
33/33 |
|
|
|
MGA10-0306 |
03*06 |
10 |
8 |
15/13 |
|
MGA25-0614 |
06M4 |
25 |
15 |
33/33 |
|
|
MGA32-0519 |
05*19 |
32 |
15 |
41/42 |
Multi Hole & Flat Hole Nylon Cable Gland Details
Gasket Of Mult Hole Cable Gland Saichuang
We use high-quality rubber gaskets with good flexibility. By using the gasket, the cable glands can achieve better waterproof & dustproof performance. The gasket can help to fix cable gland.
Sealing Nut Of Flat Hole Cable Gland
This waterproof cable gland is made of PA material. The surface is shiny,smooth and it has high toughness, strong pressure resistance, anti-aging, firm surface and long service life.
Seal Of Mult Holes Cable Gland
The seals of the cable gland are specially designed. There can be 8 holes at most. The seal has high toughness and won't make any damage to the cable. The material of the seal is good and relatively thick, which ensures the tightness of the cable gland.
Lock Nut Of Mult Holes Cable Gland Saichuang
The lock nuts are strictly manufactured. The surface is neat and smooth, no burrs, and the threads are neat and clear, which ensures the tightness and fixability of the cable gland.
SAICHUANG is a professional cable tie supplier. We provide Cable Gland, Zip Ties, Cable Tie Holder, nylon strain relief and so on. Want to know more? Please contact us.
