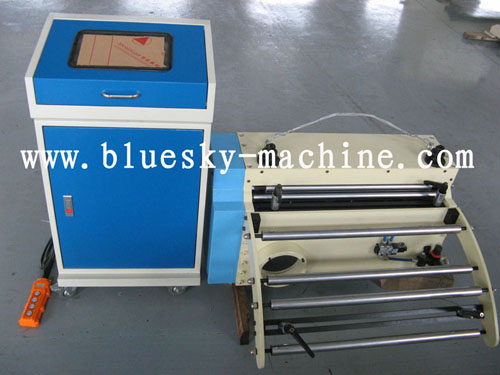

NC servo feeder NCF-400
Servo feeder widths from 200mm through 1600mm, Material thickness ranges from 0.35 to 6.0mm can be processed. Suitable for electronic part;ect high presion required.Popular with equiped with press machine.
Optional features such as motorized passline, anti-backup rolls, overhead cable sets, alternative matte chrome roll finishes, and a wide range of standard servo controls allow these feeds to be customized to meet any application needs.
Standard Features and Benefits for servo feeder:
· AC brushless servo motors: high performance and maintenance-free
· Closed loop servo system
· Kevlar timing belt and sheave drive
· Cluster gear drive of upper feed roll
· NC servo feeder Feeding accuracy of ±.003”
· Heavy duty fabricated cabinet
· Adjustable passline height
· Self-centering material guides
· Adjustable stroke pilot release mechanism.
· Catenary material support roller sections
Optional Features for servo feeder:
· Overhead cable sets
· Adjustable mounting brackets
· Motorized passline adjustment
· Strip oilers and lubricators
Model |
NCF-200 |
NCF-300 |
NCF-400 |
NCF-500 |
Max. feeding width(mm) |
200 |
300 |
400 |
500 |
Max.feeding length(mm) |
9999.99 |
9999.99 |
9999.99 |
9999.99 |
Max.feeding thickness(mm) |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
0.2-3.2 |
Pass line(mm) |
44-136/44-114 |
44-136/44-114 |
44-136/44-114 |
44-136/44-114 |
Max feeding speed(m/min) |
20 |
20 |
20 |
20 |
Releasing system |
pneumatic |
pneumatic |
pneumatic |
pneumatic |
Note: The data above is your reference only,if any changes without notice.
