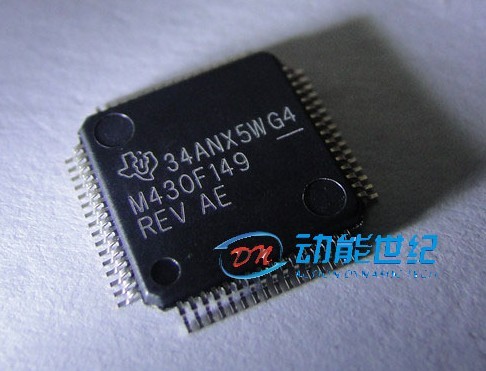

New Arrival Hot Sale MSP430 MSP430F149 MSP430F149IPMR For IC Ultra-Low-Power Microcontr...

• Low Supply-Voltage Range, 1.8 V . . . 3.6 V
• Ultralow-Power Consumption:
  • Active Mode: 280 µA at 1 MHz, 2.2V
  • Standby Mode: 1.6 µA
  • Off Mode (RAM Retention): 0.1 µA
• Five Power-Saving Modes
• Wake-Up From Standby Mode in less thatn 6 µs
• 16-Bit RISC Architecture, 125-ns Instruction Cycle Time
• 12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature
• 16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers
• 16-Bit Timer_A With Three Capture/Compare Registers
• On-Chip Comparator
• Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
• Serial Communication Interface (USART), Functions as Asynchronous UART or Synchronous SPI Interface
  • Two USARTs (USART0, USART1) — MSP430x14x(1) Devices
  • One USART (USART0) — MSP430x13x Devices
• Family Members Include:
  • MSP430F133:
    8KB+256B Flash Memory, 256B RAM
  • MSP430F135:
    16KB+256B Flash Memory, 512B RAM
  • MSP430F147, MSP430F1471:
    32KB+256B Flash Memory, 1KB RAM
  • MSP430F148, MSP430F1481:
    48KB+256B Flash Memory, 2KB RAM
  • MSP430F149, MSP430F1491:
    60KB+256B Flash Memory, 2KB RAM
• Available in 64-Pin Quad Flat Pack (QFP) and 64-pin QFN
• For Complete Module Descriptions, See theMSP430x1xx Family User's Guide, Literature Number SLAU049

The MSP430F14x1 devices are identical to the MSP430F14x devices with the exception that the ADC12 module is not implemented.
