Nozzle
Prix : different products o
SMD Nozzle

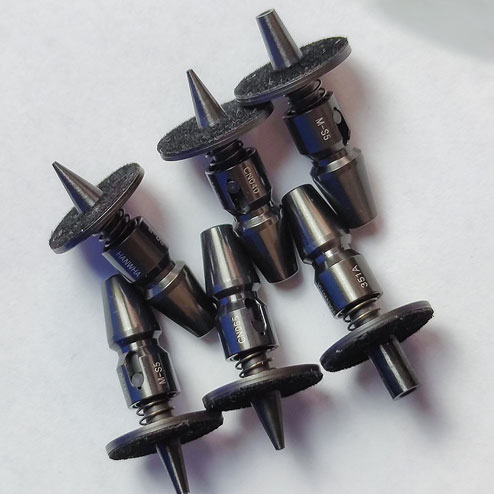

The pick and place vacuum nozzle is the key part of SMT to attach and release the absorbed components. It mainly uses the adsorption of vacuum to absorb the components and uses air blowing to put the absorbed components on the coordinate position of the circuit board.
Size of smt line nozzle
In order to assure placement accuracy, please select electronic smt nozzles according to the shape and size of components.
Table 1-1 Nozzle
|
Type |
Regular |
Regular |
Regular |
Regular |
Regular |
Regular |
Regular |
Regular |
||
|
Model |
CN030 |
CN040 |
CN065 |
CN100 |
CN140 |
CN220 |
CN400 |
CN750 |
||
|
Illustration |
|
|
|
|
|
|
|
|
||
|
External Diameter |
0.6mm |
0.8mm |
1.0mm |
1.8mm |
2.0mm |
3.6mm |
5.0mm |
9.0mm |
||
|
Inner Diameter |
0.3mm |
0.4mm |
0.7mm |
1.0mm |
1.4mm |
2.2mm |
4mm |
7.5mm |
||
|
Type |
Special |
Special |
Special |
Special |
Special |
Special |
Special |
|
||
|
Model |
YX01 |
YX02 |
YX03 |
YX05 |
YX06 |
YX07 |
- |
|||
|
Illustration |
|
|
|
|
|
|
|
|||
|
Shape |
|
|
|
|
|
|||||
Reference of nozzle selection
Table 1-2 Size comparison of nozzles
|
Model |
Recommendation (Imperial System) |
|
CN030 |
0201 |
|
CN040 |
0402 |
|
CN065 |
0402, 0603, etc. |
|
CN100 |
0805, diode,1206, 1210, etc. |
|
CN140 |
1206,1210,1812,2010, SOT23, 5050, etc. |
|
CN220 |
SOP series ICs, SOT89, SOT223, SOT252, etc. |
|
CN400 |
ICs from 5 to 12mm |
|
CN750 |
IC bigger than 12mm |
|
YX01 |
3528 Soft surface LED |
|
YX02 |
High power dome shape LED |
|
YX03 |
IC/BGA from 11mm to 17mm |
|
YX05 |
4148 round diode |
|
YX06 |
3535 ball shape LED (Spherical height 1.4mm, overall height 1.9mm） |
|
YX07 |
5050 ball shape LED (Length 5mm, Width 5mm, Height 3.02mm） |
There are many smt pick and place machine manufacturers in China, but we are one of the best choices for you.
Hangzhou TronStol Technology Co., Ltd., was established in 2010 (the company name has been updated in 2019). It is a high-tech enterprise located in Hangzhou. TronStol focuses on pick & place machines and it also helps to provide machine parts like reflow oven, stencil printer, and conveyor to satisfy customer's needs of a completed SMT production line. We are SMT One-Stop manufacturer and provider.
