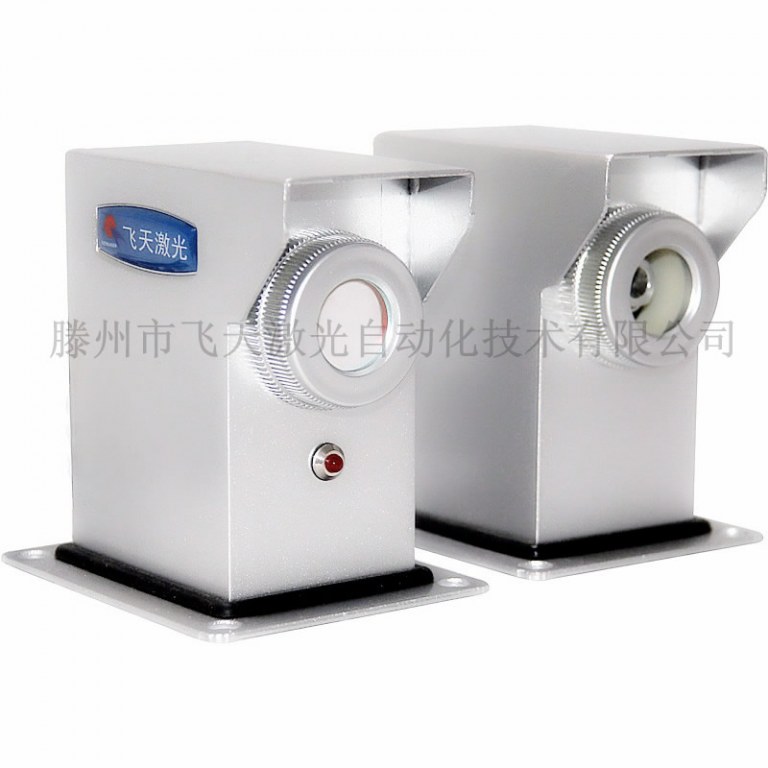

NPN PNP IP67 waterproof laser photoelectric sensor switch
Quantité : 1000
Receiver design is unique,Receiver built-in high transmittance condensing lens, collecting light and shock resistant offset capacity than similar products dozens of times; Narrow-band filter lens can filter 99% of solar, lighting and other external stray light interference. Besides, receiving signal is collected by filters, amplifying, shaping, and then processed into single-chip, so the laser ide ntification of high external stray interference resistance ability strong, low false alarm rate and fast speed.
Laser module with stability performance : Wave through the monolithic integrated circuit control, is not a simple chip plus a few RC shocks.Th e laser tube adopts design of constant current circuit with extreme small temperature excursion, ste ady luminescence power and long transmitting distance (supports range 0- 500m)
|
Item |
Outdoor waterproof Laser-beam photoelectric switches |
|
Product model |
AC-XD-A05/10/20/30/50/100/200/300/500 |
|
Bijection distance |
5m/10m/20m/30m/50m/100m/300m/500m |
|
Working voltage |
DC9～30V |
|
Working current: |
≤30mA,when transmitting, ≤35mA when receiving |
|
Load current |
Max: 300mA(Transistor)/ 2A（Relay） |
|
Laser wave length |
650nm |
|
Bijection distance |
0～500m（Customizable） |
|
Output mode |
NPN N.O/NPN N.C/PNP N.O/PNP N.C or 1 relay output N.O or N.C mode(Various output combinations, facto ry default NPN N.O.) |
|
Response time |
＜3mS |
|
Outgoing line |
1.5m（Rear outlet） |
|
Detection object |
Opaque objects |
|
material |
Shell: aluminum chassis: cold rolled steel
|
|
Reverse polarity protection of power supply |
Yes |
|
Signal short circuit protection |
Yes |
|
Action display |
Red light: alarm off: normal |
|
Environment illuminance |
Daylight lamp：≤3000Lx/Sun：≤10000Lx |
|
Insulation resistance |
≥20MΩ |
|
Beam divergence angle
|
＜3′ |
|
Receiving angle of the receiving |
＞10° |
|
Light adjustment angle |
Horizontal ±30° Vertical±30°(adjustable) |
|
Enclosure dimension(mm) L×W×H |
60×80×115 |
|
Mounting hole size |
4 M8 holes Uniform distribution |
|
Chassis dimensions（mm） |
90(L)x110(W)x2(H) |
|
Working environment temperature |
-40℃―70℃ |
|
Working environment humidity : |
＜90%RH |
|
Protection class |
IP67 |
