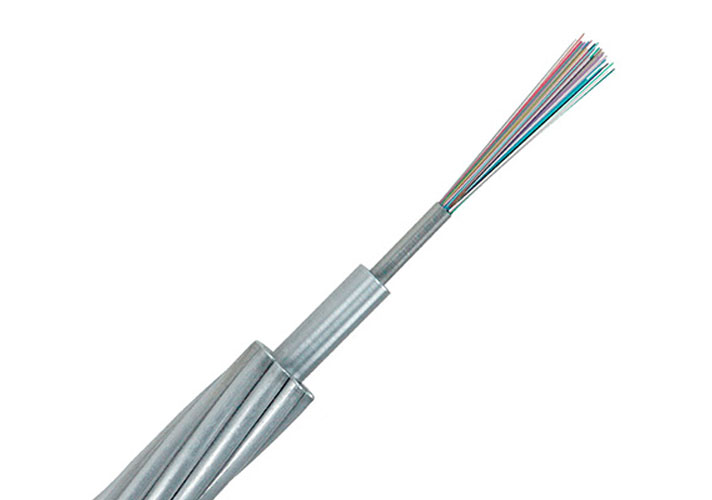

OPGW Fiber Optic Cable

Quantité : 2 containe   Prix : USD100-5000

OPGW Fiber Optic Cable

As a top opgw cable supplier, HONREY CABLE's OPGW cable is mainly used in overhead power lines. there are three main categories: aluminum tube type, aluminum skeleton type and (stainless) steel pipe type. The conductor opgw has the functions of ground wire and communication. It has the characteristics of large spacing, easy maintenance, anti-electromagnetic interference, light gravity and so on. At the same time, it also has the characteristics of high reliability, superior mechanical properties, and low cost.

OPGW Fiber Optic Cable Features

01.

Standard

IEC, IEEE, DL/T 832-2003, GB/T 7424.4-2003 Standard

02.

Application

This type of bare conductor wire is suitable for installation on new power lines with double function of ground wire and communication.

CABLE MODEL

OPGW-60

OPGW-70

OPGW-90

OPGW-110

OPGW-130

Number /diameter(mm) of stainless steel tube

1/3.5

2/2.4

2/2.6

2/2.8

1/3.0

Number /diameter of AL wire(mm)

0/3.5

12/2.4

12/2.6

12/2.8

12/3.0

Number /diameter of ACS wire(mm)

6/3.5

5/2.4

5/2.6

5/2.8

6/3.0

Diameter of Cable (mm)

10.5

12

13

14

15

RTS(KN)

75

45

53

64

80

Cable weight (kg/km)

415

320

374

432

527

DC resistance(20℃ W/km)

1.36

0.524

0.448

0.386

0.327

Modulus of elasticity(GPa)

162

96.1

95.9

95.6

97.8

coefficient of Linear thermal

12.6

17.8

17.8

17.9

17.2

expansion(1/℃×10-6)

Short circuit capacity (kA²s)

24

57.3

78.9

105.8

150.4

Max. operation temperature (℃)

200

200

200

200

200

Max. fiber count

48

32

48

52

30

Now the opgw fiber optic cable price is reasonable, if you have needs, please contact us.

Localisation : No.195, Funiu Road, Zhengzhou City, Henan Province , China, 450007 Henan ,
Personne à contacter : cable honrey, 0371 61288078
