Optical Fiber Cable

Model No : DTS-1008

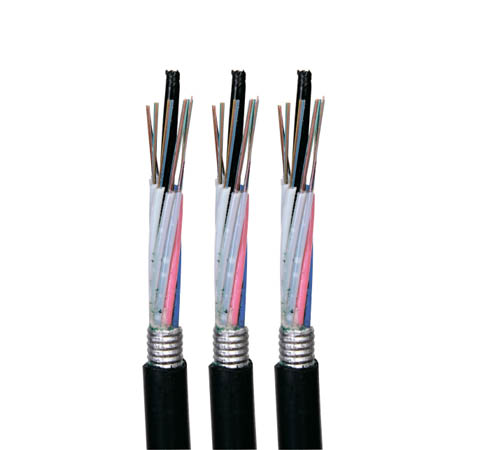

Product Name : Layer-stranded Steel Tape Armored and Sheathed Optical Cable(GYTS)

Description of Product:

In the structure of Model GYTS Optical cable,the single mode or multimode optical fibers are j acketed by loose tube and the tube is made of high modulus polyesterl.Inside the tube,it is filled w ith waterproof filling compound.One piece of metallic reinforced core is in the center of the cable core.For some optical cable with number of cores,a layer of extruded PE functions jacket of the meta llic reinforced core.Surrounding the center reinforced core,the loose tube (and filling cord)is twis ted into a compact and round cable core.The gaps within the cable core are filled with waterproof co mpound.After it is longitudinally wrapped by both side plastic coated steel tapes,PE sheath is extru ded to form an optical cable.

Features of Product:

1·The remaining length of optical fiber is controlled precisely to ensure

prefect tensile strength and temperature characteristics of optical cable.

2·The loose tube material itself has perfect hydrolysis resistance and

high strength.The specialfilling paste inside the loose tube is used to protect the optical fiber.

3·Perfect flexibility and pressing resistance.

4·PE sheath featuresperfect UV resistant performance.

5·Waterproof performance of optical cable is ensured by following measures:

　Single piece of steel wire center reinforced core; Special waterproof compound filled inside the lo ose tube Complete filled cable core;

　Moisture-proof layer of both side plastic coated steel tape;

Perfect waterproof material could prevent optical cable from

longitudinal water .
