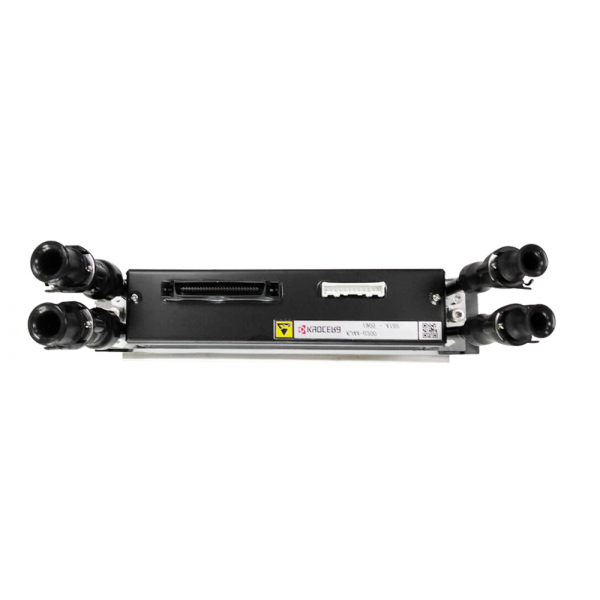

Original Kyocera KJ4A-RH UV Printhead
Prix : 1,985.00
Originale nuovo singolo colore 600dpi KY0CERA KJ4A-RH Testina di Stampa per stampanti UV
Originale kyocera testina di stampa KJ4A-RH per Handtop Docan wit-colore JHF uv stampante flatbed
Original Kyocera KJ4A-RH UV Printhead
This new generation Kyocera KJ4A-RH is designed for high speed single-pass and multi-pass applications with printers using UV ink. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 70 m/min by making use of 2,656 nozzles arranged across 108 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.
The Kyocera KJ4A-RH is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It's unique ink channel design provides a stable ink supply.
Specifications
Ink Type: UV Ink
Dimensions: 200 × 30 × 68.9mm
Dry Weight: 420g
Total Nozzles: 2.656
Nozzle Pitch: 0.042mm
Standard Resolution: 600 x 600dpi
Print Width: 108.25mm
Max. Drive Frequency: 30kHz
Drop Volume: 5, 7, 12 and 18pl
Max. Sprint Speed: 70m/min
Input Voltage: 3.3 V for logic / 29 V for driving
Temperature Control: Reservoir heater and thermistor are equipped
Printer compatibility
Dilli Neo Sun FB2513-04 D-WX
