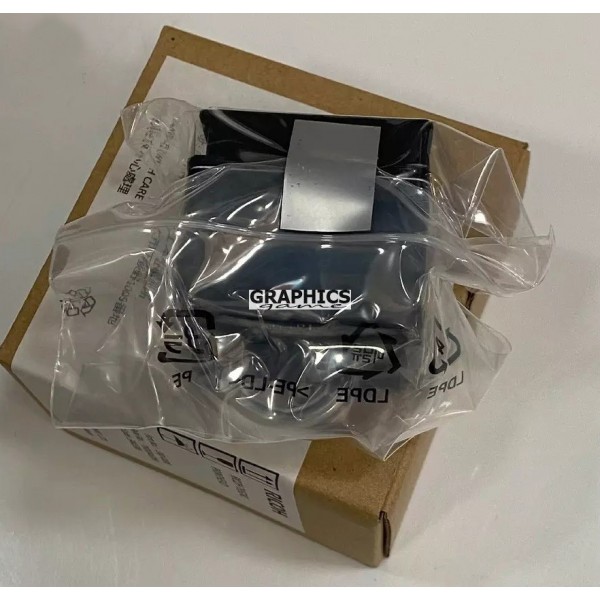

Original New Ricoh Gen5i for TH5241 for UV flatbed printer Made In Japan

This RICOH TH5241 printhead is compatible with UV, Solvent and Aqueous based inks.


This RICOH TH5241 printhead is compatible with UV, Solvent and Aqueous based inks.

With 1,280 nozzles configured in 4 x 320 nozzle rows, this head achieves high-resolution 600dpi printing.

This inkjet printhead can be used for various applications.

Product Specifications

Method: thin-film piezoelectric transducer with bend mode
Print Width: 27.1 mm (1.06")
Total printhead dimensions: 52.7 x 45.8 x 55.4 mm
Number of nozzles: 1,280 (4 x 320 channels), staggered
Nozzle Resolution: 600npi(2 colors, 1 color)　300npi(4 colors)
Nozzle spacing: A : 2.286mm B : 6.095mm
Compatible ink: UV, Solvent, Aqueous.
Weight: 63g
Max. number of color inks: 4 colors
Temperature control: Integrated thermistor, without heater.
Operator temperature range: 40° C
Firing frequency: 40kHz (2 levels); 24kHz (4 levels)
Grey-scale: 4 levels
Drop volume: 3pl (Single drop); 3～12pl (max 21pl) (Multi drop)　
Viscosity range: 7ｍPa・s
Surface tension: 27±5mN/m
This printhead carries a manufacturer warranty.
Country of origin : Japan
