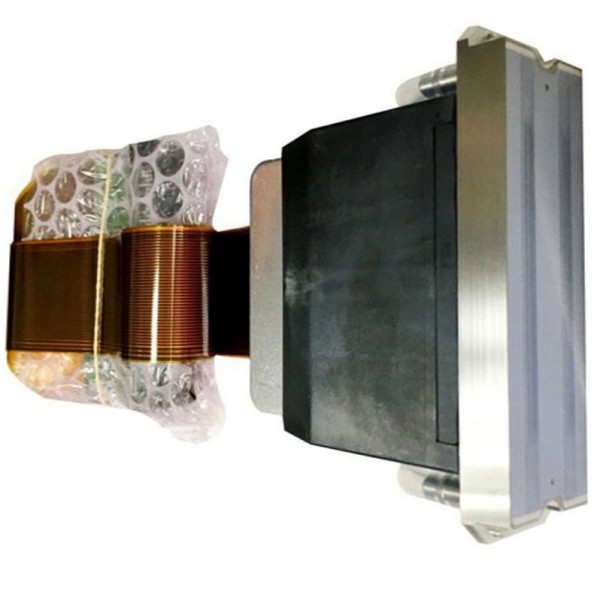

Original Ricoh Gen5 Printhead Assy Type-D TS500 1800

Quantité : 1   Prix : $ 1120

This Gen5 (MH5420/5440) N221345D Printhead Assy Type-D is suitable for Mimaki TS500-1800 & TX500-1800 series printers. This is the original Mimaki part (number M014140)Genuine New Ricoh Gen5 Printhead TS500-1800 Assy Type-D .

Product Specifications

DP part: PPHMI16007

Dimensions: 89 x 25 x 69 mm (excluding cables)

Head materials: SST, Nickel alloy and Epoxy Adhesive

Nozzle plate surface: Coated SST

Number of nozzles: 4 x 320 nozzles

Nozzle spacing: 0.1693 mm

Nozzle density: up to 600 npi

Piezo yype: D33 Stacked PZT

Temperature control: Integrated Heater and Thermistor

Operator temperature range: Up to 80° C

Native drop volume: 7 pl

Drop volume range: 7 - 35 pl

Drop velocity: 7 m/s

Jetting frequency: Up to 60 kHZ

Life: 100 billion actuations per nozzle


Mimaki : TS500-1800, TX500-1800B, TX500-1800DS

Localisation : Jl. Cendrawasih No.329A, Kunjung Mae, Kec. Mariso, 90125 Makassar,
Personne à contacter : Bastian Bimo, +62 4 11 43 75 03
