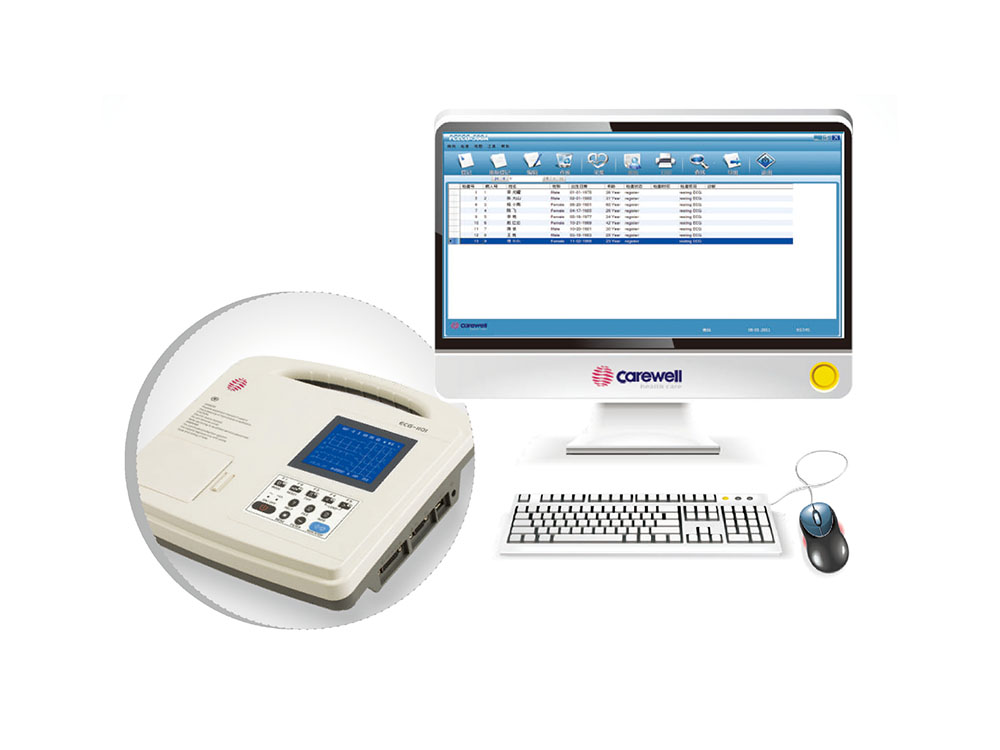

PC ECG-500 ECG Workstation
PC ECG-500 ECG Workstation Details
Product Features
• Can be used in hospital, clinique, physical examination center, community health center and pet center
• Application of CSE and AHA database, reliable automatic measurement and analysis result
• One key operation to install the USB driver software, database and PCECG-500 system
• 12-lead simultaneous acquisition and display
• High-precision electronic ruler, supporting adjustment and analysis of any measuring point.
• Up to 3600 seconds of ECG data can be stored, and 10 seconds can be picked out to analyze and print.• Multiple, practical and user-definable ECG diagnosis dictionaries and modules
• Professional management database of 4G capacity, faster, safer and more stable
• 9 formats for option: XML, SCP, PDF, JPEG, DICOM3.0, HL7 aECG,WORD, BITMAP, MFER
• Multi-format printout of 12*1, 6*2+1 or 4*3+1 on A4 paper vertically or horizontally.
• Quick search function: the doctor can set all kinds of search terms, convenient for patient data recording and statistics.
• Can be connected to PC and hospital network
PC Operating Environment
Hardware: |
CPU |
Pentium CPU 1G Hz or better |
Memory |
1G or better |
|
Input Circuit |
USB or RS232 |
|
Display |
1024*768 or better |
|
Software: |
Operation system |
Microsoft Windows XP/ Vista/ win7/ win10 |
Licensing type |
USB dongle software license. |
Modularized Design (The Relationship Between Four Systems And Modules)
Name of systemECG ReceiverECG ReceiverECG Vet Manager & AcquirerECG Manager& AcquirerTypePCECG-500(R)PCECG-500(M)PCECG-500(VM)PCECG-500(A)Brief introduction to the functionsCan receive ECG files from several ECGs and support a variety of file format conversion, storage and outputCan receive ECG files from several ECGs, and manage files, such as register, edit, waveform review, analysis and measurementExcept for all the functions of receiver and manager systems, it can also support the real-time lead acquisition, display and analysis.Except for all the functions of receiver and manager systems, it can also support the real-time lead acquisition, display and analysis.Module compositionFile receiver module••••Data management module for human
•
•Data management module for veterinary
•
Acquirer module
••Connected deviceECG (human / vet)ECG (human)ECG (Vet) & collecting boxECG (human) & collecting boxStandard configurationSoftware CD, RS232 cable, Dongle(R)Software CD, RS232 cable, Dongle(M)Software CD, RS232 cable, USB cable, Dongle (VA)Software CD, RS232 cable, USB cable, Dongle (A)OptionsNetwork converterNetwork converterNetwork converterNetwork converter
As one of medical equipment manufacturers in china, we have types of related products for sale, if you have needs, please contact us.
If you want to know more about lepu medical company profile, please visit our website.
