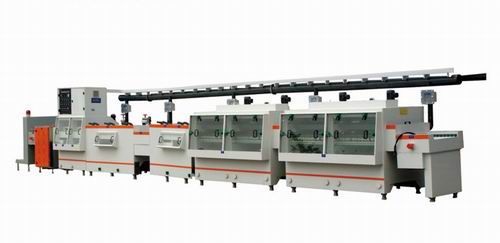

PCB etching and stripping machine
Quantité : 1 Prix : 2 000,00 €
PCB Etching and Stripping line
Main parameters:
Dimension: |
12500mm×2000mm×1980mm |
Working height: |
900mm |
Working width: |
650mm |
Wheelbase: |
60mm |
Working speed: |
0.1~5m/mm |
Supply voltage: |
Three phase four wire 380V/50Hz |
Total power: |
86KW |
Max work piece: |
610mm×460mm |
Min work piece: |
120mm×80mm |
Working thickness: |
0.1~3.2mm |
Water consumption: |
24~36 L/min |
Working process:
Feeding →Etching →Etching2→Recycle water washing→Running water washing →Blot up →Absorb →Stripping →Recycle water washing →Running water washing →Blot up →Cool drying →Discharge
Features:
1.This line was included etching and stripping two parts.
2.The etching accurate of line width can reach 0.04mm.
3.Various wheelbase of 28mm 35mm 48mm 60mm 70mm are satisfy for your different requirement, Special arrangement are very fit for processing thin plate.
4.Spraying uniformly by special design nozzles, displayed and controlled individually.
5.The medicine water can circulate and to be filtered automatically.
6.The control cabinet was above on the equipment, maintenance more convenience and security.
7.Imported frequency conversion device and pump.
8.The concentration of air exhaust and drainage, make appearance more clean and easy to installation.
9.Appearance is adopt pp materials ,have good weather-resist and water resist.
10.It's very suitable for mass production, more efficiency and reduced cost.
Personne à contacter : Grace Yang, 86 010 65485421
