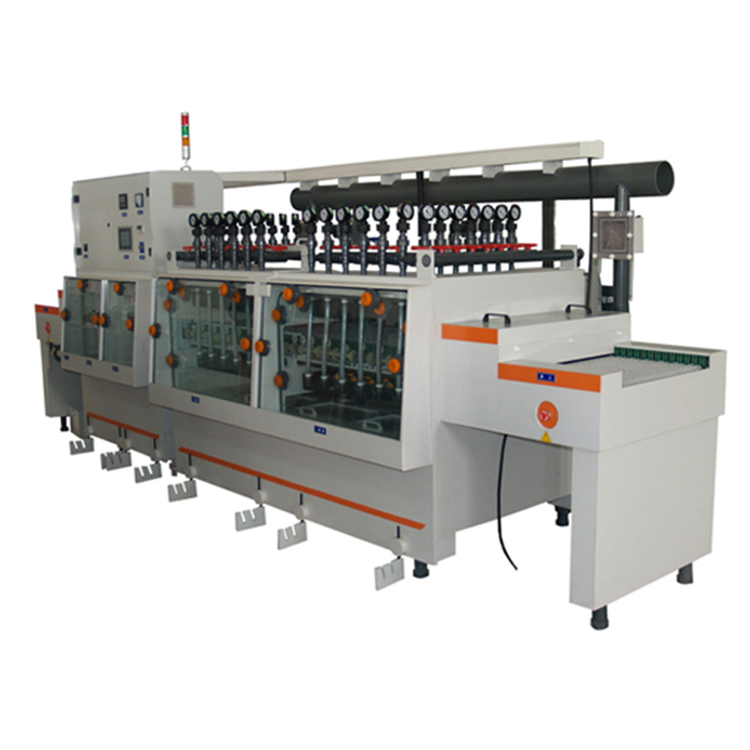

PCB production Printed circuit board Chemical etching machine
Quantité : 1 Prix : USD 13000-16000
Details Images
Products Description
|
Dimension: |
7820mm×2300mm×2000mm |
|
Working height: |
900mm±25mm |
|
Working width: |
650mm |
|
Wheel base: |
28mm 35mm 48mm 70mm |
|
Working speed: |
2m/mm(preset working speed) |
|
Supply voltage: |
Three phase four wire,380V/50Hz |
|
Total power: |
41KW |
|
Max work piece: |
610mm×460mm |
|
Min work piece: |
150mm×150mm |
|
Working thickness: |
0.1-3.2mm |
|
Water consumption: |
8~12 L/min |
|
Working temperature |
0 - 55°C |
|
Highest Temperature |
70°C |
Features:
1.Adopt touch screen device and PLC control system , simple operation and more convenient
2.Various wheelbase of 28mm, 35mm 48mm 70mm are saitisfy for your different requirement, Special arrangement are very fit for
processing thin plate.
3.Spraying uniformly by special design nozzles, displayed and controlled individually
4.The control cabinet was above on the equipment, maintenance more convenience and security.
5.Imported frequency conversion device and pump.
6.The concentration of air exhaust and drainage, make appearance more clean and easy to installation
7.The etching accurate of line width can reach 0.04mm.
