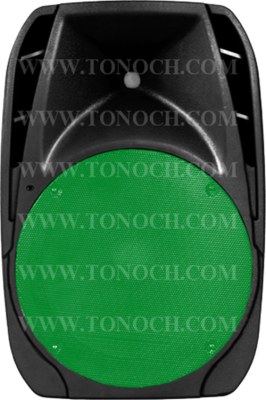

PH Series Passive Speaker BOX

PH Series Passive Speaker BOX

PH08

PN08 Speaker BOX Discription: 8" 2 Way Passiver Speaker

PH08 Speaker BOX Freq Response: 40 Hz-19 KHz

PH08 Speaker BOX Max SPL: 92dB

PN08 Speaker BOX Sensitivity: 90 dB± 2dB

PH08 Speaker BOX Impedance: 8 Ω

PH08 Speaker BOX Low Freq Woofer: 8" 30oz 1.5" VC

PH08 Speaker BOX High Freq Driver: 1" Ti. Diap. Driver 8 Ω

PH08 Speaker BOX Rms Power: 90 W

PH08 Speaker BOX Package(W×D×H): 295×245×435 mm

PH08 Speaker BOX Weight: 7 kgs

PH10

PN10 Speaker BOX Discription: 10" 2Way Passiver Speaker

PH10 Speaker BOX Freq Response: 30 Hz-19 KHz

PH10 Speaker BOX Max SPL: 95dB

PH10 Speaker BOX Sensitivity: 93 dB± 2dB

PH10 Speaker BOX Impedance: 8 Ω

PH10 Speaker BOX Low Freq Woofer: 10" 30oz 1.5" VC

PH10 Speaker BOX High Freq Driver: 1" Ti. Diap. Driver 8 Ω

PH10 Speaker BOX Rms Power: 120 W

PH10 Speaker BOX Package(W×D×H): 355×295×545 mm

PH10 Speaker BOX Weight: 10 kgs

PH12

PH12 Speaker BOX Discription: 12" 2Way Passiver Speaker

PH12 Speaker BOX Freq Response: 30 Hz-20 KHz

PH12 Speaker BOX Max SPL: 98dB

PH12 Speaker BOX Sensitivity: 97 dB± 2dB

PH12 Speaker BOX Impedance: 8 Ω

PH12 Speaker BOX Low Freq Woofer: 12" 40oz 2" VC

PH12 Speaker BOX High Freq Driver: 1.35" Ti. Diap. Driver 8 Ω

PH12 Speaker BOX Rms Power: 140 W

PH12 Speaker BOX Package(W×D×H): 420×341×628 mm

PH12 Speaker BOX Weight: 13 kgs

PH15

PH15 Speaker BOX Discription: 15" 2Way Passiver Speaker

PH15 Speaker BOX Freq Response: 30 Hz-20 KHz

PH15 Speaker BOX Max SPL: 100dB

PH15 Speaker BOX Sensitivity: 98 dB± 2dB

PH15 Speaker BOX Impedance: 8 Ω

PH15 Speaker BOX Low Freq Woofer: 15" 50oz 2.5" VC

PH15 Speaker BOX High Freq Driver: 1.35" Ti. Diap. Driver 8 Ω

PN15 Speaker BOX Rms Power: 180 W

PH15 Speaker BOX Package(W×D×H): 485×400×740 mm

PH15 Speaker BOX Weight: 16 kgs
