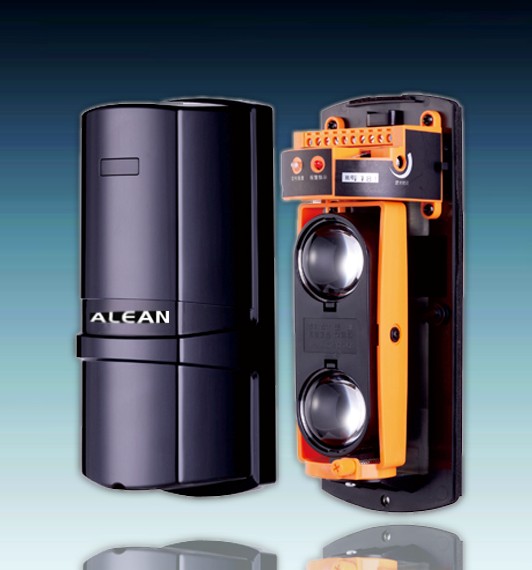

Photoelectric Beam Sensor ABT2
Quantité : 1 pair Prix : USD10-30
Photoelectric Beam Sensor ABT2
ABT2
Features:
Full time NC/NO relay output, compatible with other brand burglar alarm systems such as HONEYWELL, BOSCH, Paradox, GE and DSC, etc.
Digital frequency conversion.
Easy alignment with visual LED indicator.
PC engineering plastic material
Professional waterproof design with the rubber seal around
Resistant to rain, fog, snow and frost.
IP degree: IP65
Adopt microprocessor control(CPU), real digital circuit.
Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight, completely against fluorescent and car light
AGC circuit, the detector will automatically increase sensitivity when faced harsh environment.
Horizontal / vertical optical angle can be easy to adjust
Parameters:
|
Model |
ABT2-40 |
ABT2-60 |
ABT2-80 |
ABT2-100 |
|
Detecting distance (outdoor) |
40m |
60m |
80m |
100m |
|
Detecting distance (indoor) |
120m |
180m |
240m |
300m |
|
Detection method |
Simultaneous interruption of 2 infrared beams |
|||
|
Response speed |
12-250msec |
|||
|
Alarm output |
Switch signal output(NO/NC) |
|||
|
Power and Voltage |
DC12~24V; AC11-18V |
|||
|
Current consumption |
100mA MAX |
|||
|
Operating temperature |
-25℃—55℃ |
|||
|
Humidity |
95% MAX |
|||
|
Tamper |
NC. 1B contact output，DC26V/0.5AMax. |
|||
|
IP rating |
IP 65 |
|||
|
Exterior dimension |
80mm*77mm*195mm |
|||
|
Weight |
1.0kg |
|||
If you have questions or inquirys please contact me freely.
Contact: ken[at]alean.cn
Personne à contacter : Ken Yang, +86 0755 82590363
