PML Lifting Maganet
Prix : 0.01-1000
Featured with a built-in strong permanent magnet circuit, TITIANSUHE lifting clamps suppliers permanent lifter magnet is designed to handle steel plates, , and rods simply and quickly without the help of lifting slings or hoisting. They do not require the use of electricity and are much safer to operate since there is no concern for operation failure due to power shut down.
HVR MAG designs and manufactures lifting magnets for a wide range of applications using permanent, electro-permanent, battery-powered, and electromagnetic technologies. All our industrial lifting magnets are custom-engineered to pick up, transfer or place ferrous materials regardless of size, weight, or shape, reliably and economically.
These below-the-hook lifting magnets are commonly used in steel mills, scrap yards, loading docks, warehouses, foundries, shipyards, coil and pipe distributors, and other users of applicable steel products.
This below-the-hook manually switched permanent magnet lifter, for safe and reliable material handling of flat and round steel parts, allows steel handlers to quickly and simply maneuver steel plates, and rods without the use of slings, chains, and blocking.
Quick View of PML Lifting Maganet PML
Model No.: TC
Capacity: 150kg through 6000kg
Color: Orange paint, other colors are available upon request
Packing: Wooden box
Features and Advantages of PML Lifting Maganet PML
Built-in Strong permanent Magnet Circuit-Provide strong and durable attachment to a steel plate, , and rods.
D Shackle Constructed-Can be attached to the hook of lifting equipment directly, no slings or hoisting needed.
Rubber Sleeve Handle-Gives comfortable operation when attaching or detaching the magnet lifter to a steel plate, or rods.
Manually Switched-By simply.
Strong permanent magnetic circuit.
Stable and lasting working performance.
Strong pull-off strength.
Difference safety factors for your choice.

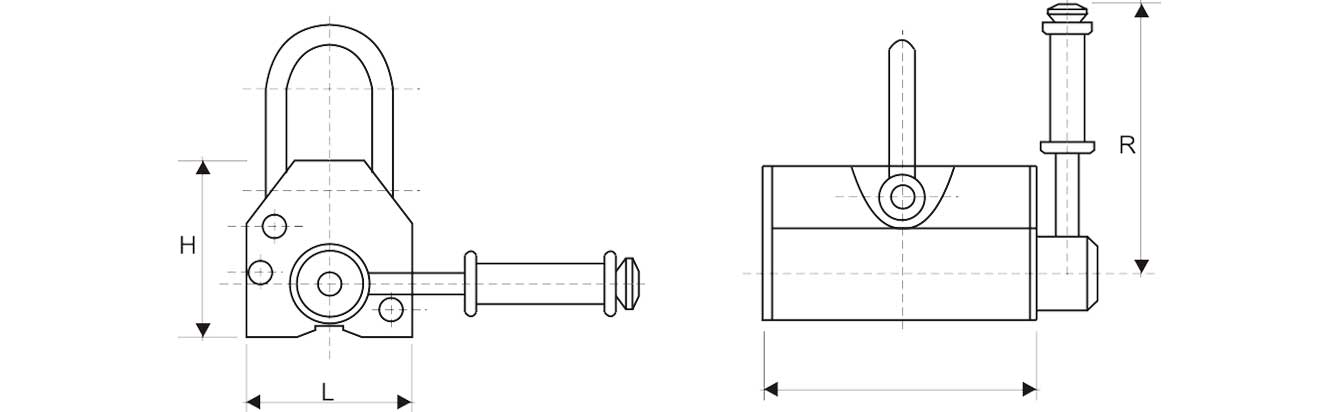

Data Sheet of PML Lifting Maganet PML
Model |
Rated Lifting Strength (Kgf) |
Cylindrical Lifting Strength (Kgf) |
Max pull-off Strength (Kgf) |
L |
B |
H |
R |
Operation temperature (℃) |
Net Weight (Kg) |
TC2 150 |
150 |
75 |
300 |
67 |
105 |
62 |
143 |
<80</span> |
3 |
TC2 500 |
500 |
250 |
1000 |
91 |
209 |
92 |
181 |
<80</span> |
10 |
TC2 1000 |
1000 |
500 |
2000 |
117 |
266 |
122 |
217 |
<80</span> |
24 |
TC2 1600 |
1600 |
800 |
3200 |
163 |
354 |
176 |
285 |
<80</span> |
50 |
TC2 3200 |
3200 |
1600 |
6400 |
215 |
443 |
234 |
466 |
<80</span> |
125 |
TC1 Model safety factor 3: 1
Model |
Rated Lifting Strength (Kgf) |
Cylindrical Lifting Strength (Kgf) |
Max pull-off Strength (Kgf) |
L |
B |
H |
R |
Operation temperature (℃) |
Net Weight (Kg) |
TC1 100 |
100 |
50 |
300 |
62 |
92 |
67 |
140 |
<80</span> |
3 |
TC1 300 |
300 |
150 |
900 |
92 |
163 |
93 |
180 |
<80</span> |
10 |
TC1 400 |
400 |
200 |
1200 |
92 |
163 |
93 |
180 |
<80</span> |
10 |
TC1 500 |
500 |
250 |
1500 |
92 |
210 |
93 |
210 |
<80</span> |
14 |
TC1 600 |
600 |
300 |
1800 |
120 |
216 |
116 |
220 |
<80</span> |
21 |
TC1 1000 |
1000 |
500 |
3000 |
152 |
264 |
136 |
260 |
<80</span> |
38 |
TC1 2000 |
2000 |
1000 |
6000 |
172 |
395 |
168 |
375 |
<80</span> |
82 |
TC1 3000 |
3000 |
1500 |
9000 |
232 |
442 |
221 |
450 |
<80</span> |
160 |
TC1 4000 |
4000 |
2000 |
12000 |
232 |
575 |
221 |
550 |
<80</span> |
220 |
TC1 5000 |
5000 |
2500 |
15000 |
296 |
650 |
266 |
700 |
<80</span> |
355 |
TC1 6000 |
6000 |
3000 |
18000 |
296 |
720 |
266 |
700 |
<80</span> |
398 |
As one of magnetic lifters manufacturers, we can offer sorts of magnetic lifting devices for sale, if you are interested, please leave us a message.
As one of lifting equipment manufacturers, we have been engaged in manufacturing lifting equipment for sale, anything you need, please contact us.
If you want to know more types of wire rope hoist, please visit our website.
