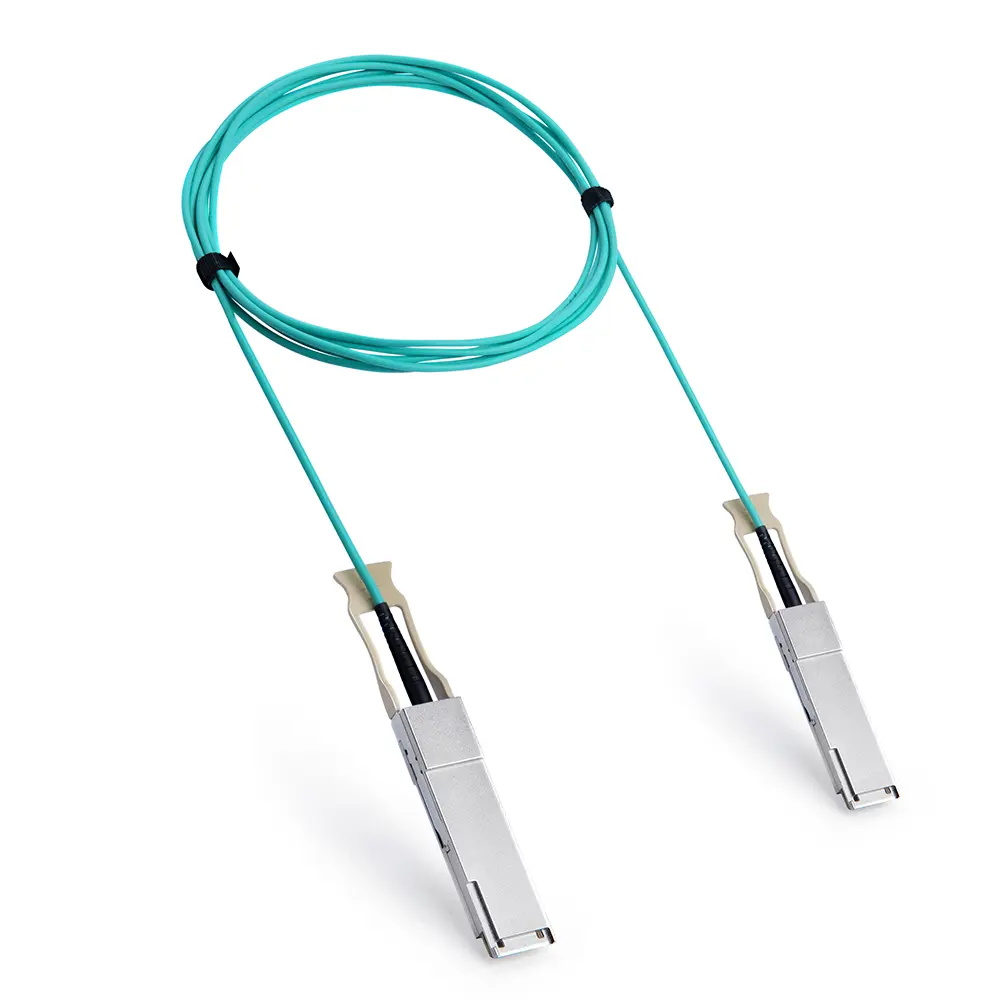

QSFP+ 40G 850nm XXm AOC
The Gearlink's QSFP+ active optic cables are high performance, low power consumption, long reach interconnect solution supporting InfiniBand DR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel, PCIe, and SAS. 40g aoc is compliant with the QSFP+ MSA and IEEE P802.3ba. GearLink's QSFP+ AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10.3Gb/s, providing an aggregated rate of 41.2Gb/s. GearLink's QSFP+ AOC is one kind of parallel transceiver that provides increased port density and total system cost savings.
Compatibility of QSFP+ 40G 850nm XXm AOC
Cisco
Juniper
Brocade
Arista
Dell
Extreme
Mellanox
Intel
|
QSFP-H40G-AOC2M |
2M 40G QSFP+ AOC |
|
QSFP-H40G-AOC1M |
1M 40G QSFP+ AOC |
|
QSFP-H40G-AOC50M |
50M 40G QSFP+ AOC |
|
QSFP-H40G-AOC30M |
30M 40G QSFP+ AOC |
|
QSFP-H40G-AOC25M |
25M 40G QSFP+ AOC |
|
QSFP-H40G-AOC20M |
20M 40G QSFP+ AOC |
|
QSFP-H40G-AOC10M |
10M 40G QSFP+ AOC |
|
QSFP-H40G-AOC7M |
7M 40G QSFP+ AOC |
Technical Specification Of QSFP+ 40G 850nm XXm AOC Fibre Transceiver
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Supply Voltage |
Vcc3 |
-0.5 |
- |
+3.6 |
V |
|
|
Storage Temperature |
Ts |
-10 |
- |
+85 |
°C |
|
|
Operating Humidity |
RH |
+5 |
- |
+85 |
% |
1 |
Note:
1. No condensation
Recommended Operating Conditions
|
Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
|
Operating Case Temperature |
TC |
0 |
- |
+70 |
°C |
|
|
Power Supply Voltage |
Vcc |
3.14 |
3.3 |
3.47 |
V |
|
|
Power Dissipation |
Pd |
- |
- |
1.5 |
W |
1 |
|
Bit Rate |
BR |
1.25 |
10.3125 |
- |
Gbps |
|
Note:
1. Per terminal
As a reliable optical transceiver manufacturer, we will do our best to meet all the needs of customers.
Personne à contacter : gear link, +86 027 87887588
