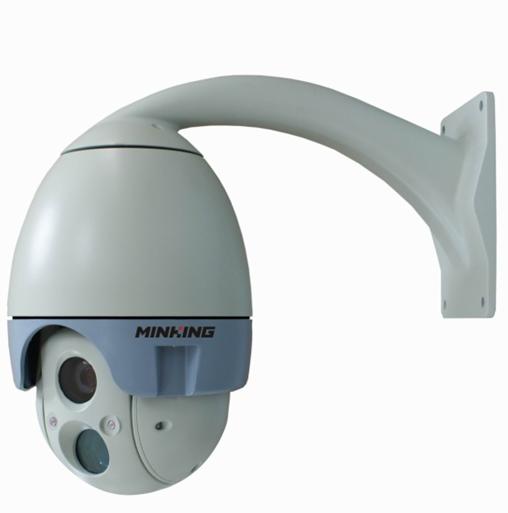

Up to 150m night vision - Outdoor IR high speed dome camera MG-HIR series
Quantité : MOQ:1PC Prix : Factory price
Camera specification
Model No. |
MG-HIR185BF |
MG-HIR235BF |
MG- HIR285BF |
Camera |
HITACHI VK-S888EN |
HITACHI VK-S858EN |
SONY FCB-CX985EP |
Image device |
1/3'' SONY CCD |
4.5mmDia. 1/4" SONY CCD |
1/4" Super HAD CCD |
Wide dynamic range |
No |
Yes |
No |
Progressive scanning |
No |
Yes |
No |
Effective pixels |
752(H)X582(V) |
||
Synchronization system |
internal / external |
||
Video output |
VBS 1.0Vp-p/75Ω |
||
White balance |
Auto / Manual / Indoor / Outdoor / Auto-tracking / One click |
||
Scanning frequency |
15.625KHz(H) 50Hz(V) |
||
S/N Ratio |
>50dB |
||
Horizontal resolution |
540TVL |
540TVL |
550TVL |
Electronic shutter |
1/1 ~1/30,000s |
1/1.5 ~1/30,000s |
1/1~1/10,000s |
Minimum illumination |
0.0025Lux |
0.001Lux |
0.25Lux |
Focal length |
f=4.7~84.6mm |
f=3.6~82.8mm |
f=3.5~98.0mm |
Zoom ratio |
Total 216X |
Total 276X |
Total 336X |
Optical 18X |
Optical 23X |
Optical 28X |
|
Digital 12X |
Digital 12X |
Digital 12X |
|
Focal & Iris |
Auto / Manual |
Mechanical/Electrical
Manual pan speed |
0.7°~200°/s |
Manual tilt speed |
1°~80°/s |
Manual tilt range |
0°~90° |
Pan range: |
360°Continuously |
Preset: |
128(Max) |
Preset capture time: |
≤2 s |
Preset speed: |
200°/ s |
Auto scanning speed range |
7 level speed for adjusting |
IR distance: |
80m-150m |
Wave: |
850nm |
IR Servo: |
Optional |
Preset cruising speed: |
Optional |
Remote address: |
1023(Max) |
Communication: |
RS-485 |
Baud rate: |
2400、4800、9600、19200 for optional |
Power supply: |
DC12V(±20%) |
Work temperature(Indoor) |
-10℃~+50℃ |
Work temperature(Outdoor) |
-35℃~+50℃ |
