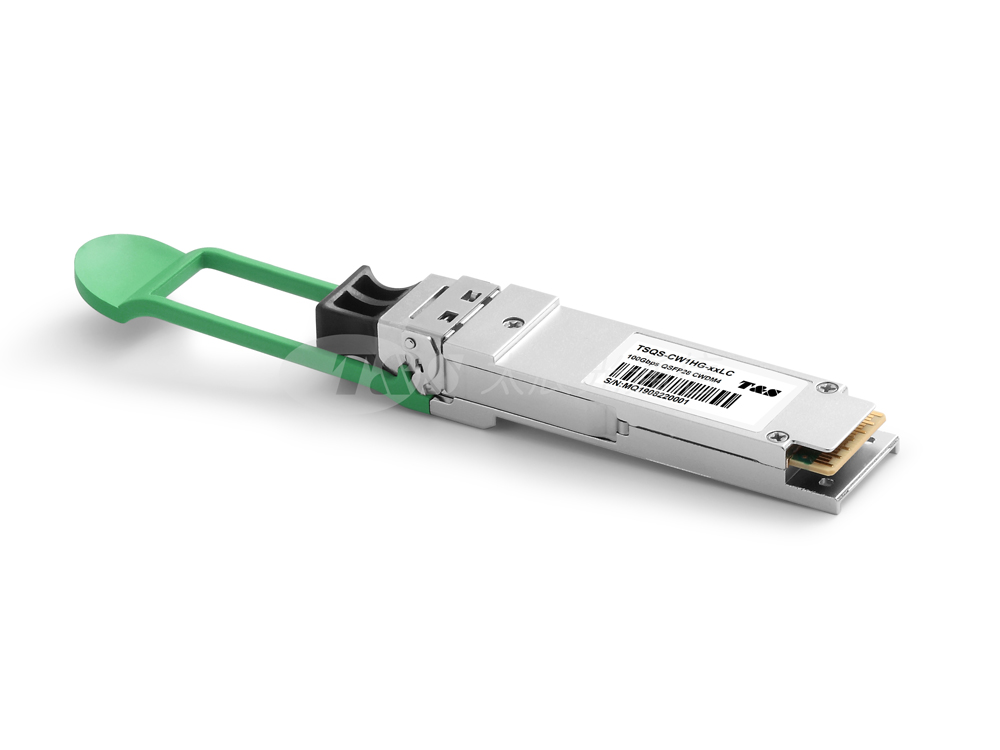

The QSFP28 100G-CWDM4-10km module is a highly integrated 4x28G transceiver focused on reach, bandwidth, density and cost for high port-count 100G systems, and client-side 100G interfaces. It is compliant with the 100G 4WDM-10 MSA, which is based on the CWDM4 MSA version 1.1 but alters some of the specifications to extend the link reach from 2 km to 10 km. It is interoperable with CWDM4 transceivers over a 2 km reach.

Features of QSFP28 100G CWDM4 10km

Reach: 10 km via SMF

Optical link budget: Supports 6.5 dB of link budget

Link budget assumes the use of KR4 FEC by the host

Uncooled CWDM DFB lasers, directly modulated

Electrical interface: retimed CAUI-4 per 100G Ethernet IEEE 802.3bm Annex 83E

User controllable Transmit Input Equalization and Receiver Output Amplitud

MSA-compliant performance monitoring via I2C interface

Fiber connector: SMF LC duplex connector

Hot-pluggable

0–70°C operating temp

Power dissipation < 3.5W

RoHS6 compliant (lead-free)

Applications of QSFP28 100G CWDM4 10km

100G CWDM4 Ethernet

InfiniBand 4x EDR

Specifications of QSFP28 100G CWDM4 10km

Optical Transmitter PerformanceOptical Receiver PerformanceRecommended Operating Environment

Parameter

Symbol

Min

Typical

Max

Unit

Center Wavelength

Ch0

λ0

1264.5

-

1277.5

nm

Ch1

λ1

1284.5

-

1297.5

nm

Ch2

λ2

1304.5

-

1317.5

nm

Ch3

λ3

1324.5

-

1337.5

nm

Bit Rate per Channel

B

25.78125±100ppm

Gb/s

Side Mode Suppression Ratio

SMSR

30

-

-

dB

Average launch power, each lane

-

-6.5

-

2.5

dBm

Optical Modulation Amplitude (each lane)

OMA

-4.0

-

2.5

dBm

Launch power in OMA minus TDP, each lane

OMA-TDP

-5.0

-

dBm

Transmission & dispersion penalty,

each lane

TDP

-

-

3.0

dB

RIN20 OMA

-

-

-

-130

dB/Hz

Transmitter Reflectance

-

-

-

-20

dB

Extinction Ratio

ER

3.5

-

dB

Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3}

{0.31, 0.4, 0.45, 0.34, 0.38, 0.4}

100G 4WDM-10 MSA Technical Specifications Release 1.0

Average launch power of OFF transmitter, each lane

-

-

-

-30

dBm

Optical return loss tolerance

-

-

-

20

dB

Pin Descriptions of QSFP28 100G CWDM4 10km

Pin Definition of QSFP28 100G CWDM4 10km

Pin

Symbol

Name/Description

1

GND

Ground

2

Tx2n

Transmitter Inverted Data Input

3

Tx2p

Transmitter Non-Inverted Data Input

4

GND

Ground

5

Tx4n

Transmitter Inverted Data Input

6

Tx4p

Transmitter Non-Inverted Data Input

7

GND

Ground

8

ModSelL

Module Select

9

ResetL

Module Reset

10

Vcc Rx

+3.3 V Power supply receiver

11

SCL

2-wire serial interface clock

12

SDA

2-wire serial interface data

13

GND

Ground

14

Rx3p

Receiver Non-Inverted Data Output

15

Rx3n

Receiver Inverted Data Output

16

GND

Ground

17

Rx1p

Receiver Non-Inverted Data Output

18

Rx1n

Receiver Inverted Data Output

19

GND

Ground

20

GND

Ground

21

Rx2n

Receiver Inverted Data Output

22

Rx2p

Receiver Non-Inverted Data Output

23

GND

Ground

24

Rx4n

Receiver Inverted Data Output

25

Rx4p

Receiver Non-Inverted Data Output

26

GND

Ground

27

ModPrsL

Module Present

28

IntL

Interrupt

29

Vcc Tx

+3.3 V Power supply transmitter

30

Vcc1

+3.3 V Power Supply

31

LPMode

Low Power Mode

32

GND

Ground

33

Tx3p

Transmitter Non-Inverted Data Input

34

Tx3n

Transmitter Inverted Data Input

35

GND

Ground

36

Tx1p

Transmitter Non-Inverted Data Input

37

Tx1n

Transmitter Inverted Data Input

38

GND

Ground

Important Notice of QSFP28 100G CWDM4 10km

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by T&S before they become applicable to any particular order or contract. In accordance with the T&S policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of T&S or others. Further details are available from any T&S sales representative.
