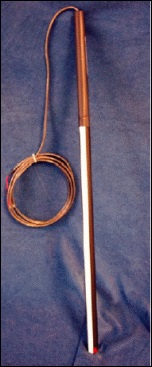

QT-AQUA Soil moisture/temperature meter

Product description: The QT-AQUA soil moisture/temperature meter can be used for the measurement of soil volumetric water content based on the advanced TDR principle. The electrical signal can be directly output, and the soil volumetric water content and soil temperature can be shown directly. The meter can be widely used in agricultural production, scientific research, etc because of its low cost.

Feature
GPS coordination can be recorded
Record data Automatically or manually
Wireless data transmission via Wi-Fi
Recognize sensors by two-dimensional code
Automatically recognize connected sensors
Terminal memory card is up to 32G
Display real-time data and curve of recorded data
Export data to Excel for analysis
Technical parameters
AQUA-TEL-TDR

Soil moisture

Measurement range
0~100%

Accuracy
< 3%

Repeatability error
< 1%

Output
Optional 0~5 V; 4~20 mA; 0~1 mA

Soil temperature

Measurement range
-60~85℃

Accuracy
±2℃

Output
0°C = 273 μA， 50°C=323 μA

Probe parameters

Power
12 VDC ±20% @ 40 mA

Size
68cm length x 1.9 cm diameter

Warm-up time
1s

Standard cables
3m

Handheld terminal

CPU
Quad-Core: 1.3GHz

Operating system
Android 4.2

ROM
4G

RAM
1G

Extended memory
up to 32G

Screen size
5.0 In.

Screen resolution
960*540

Operation mode
Touch screen

Screen color support
16 million

Origin: China
