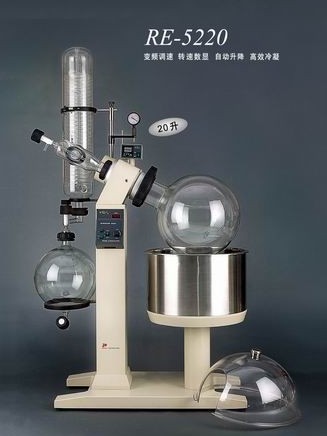

RE-5220 20L chemical stainless steel Rotary Evaporator

Quantité : 1 SET   Prix : US $ 1-10/ Set

RE-5220 20L chemical stainless steel Rotary Evaporator

converting frequency adjustable speeding

Rotating-speed digital automatical lift

Introduction

RE-5220 New model descending style Rotary Evaporator to adapt Rotating Flask of big capacity and big calibration; it can increase evaporating area, to put it into water bath in decompression, over rotating over heating to diffuse effectively liquid to finish evaporation. It is used in consentration, drying, extraction, recycling. It is good device for big production.

characteristics:

1main machine: introducing advanced transmission system, the structure is reasonable to endure long time in warranty.

2control-temperature: introducing abroad advanced converting-frequency control system, temperature control system to ensure exaction of rotary evaporator

3Water Bath: choosing imported stainless board to make it, vertically automatical lift.

4Sealing: choosing the latest PTFE material to make it by special craft to enhance Sealing, Non- corrosion, high wearing feature.

5main structure: to adapt quality duralumin and stainless material.

Technical Parameters

Rotating Flask

Capacity: 20LFlange calibration 125mm

Receiving Flask

Capacity: 10L

Rotating Speeding

10-120rpm

Rate of evaporation

5L/h

Motor:

220V 125W

Condenser

3 triple

Water bath

stainless

Water bath Temperature

digital temperature range: 0~99°C

lift distance

0-190mm

Power supply

~220v/50Hz

Power

5Kw

Dimension(cm)

85X52x160cm

alt

Localisation : Room 31704, 17/F, Unit 3, Bldg. 1, Liwan Landao, No. 3, Kechuang Road, Yanta District, Xi'an, Shaanxi, China (Mainland) , 710065 Xi'an,
Personne à contacter : Wang Mendy, 0086 29 81047996

Bonne affaire : acheter au vendeur
