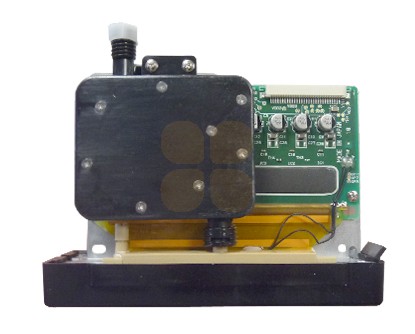

Seiko SPT-510 / 35PL - RH1513D-3322

Specifications
- Technology: Drop on demand Piezo Electric
- Active Nozzles: 510
- Native Resolution: 180 dpi
- Max Resolution: 720 dpi
- Drop Volume: 35 pl
- Firing Frequency: 6-8 Khz
- Linear Print Speed: 0.49 m/sec@360dpi
- Proprietary parrallel I/F: 30 pins

Printer compatibility:

FY-Union Challenger FY-3204H / Challenger FY-3206S / Challenger FY-3208H / Challenger FY-3208HF / Challenger FY-5008GS, Infiniti FY-3206, Gongzheng GZHS 3204DS / GZK 3206 AS / 3208 AS, Icontek 3306 / 3308, Speedvision Speedjet-Pro / OrionJet GZE1806S, Ataline UD-2506G / UD-2106G / UD-1806G, Vutek QS220 / QS2000 / QS3200 / QS3220, Zhongye SK-1604

The Seiko SPT510 drop on demand piezo printhead is compatible with a wide-range of grand-format digital printers, including Infiniti printers FY 3206. Fully equipped with 510 active nozzles for high-resolution (720dpi) and high-speed (35 pl) printing and steel-plate protection for a longer life, this durable printhead lasts 4-5 times longer than many common128 printheads.
