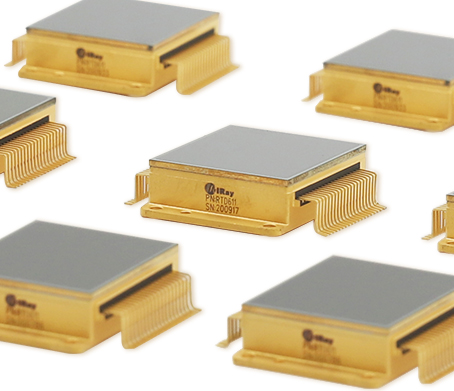

RTD3171MR Metallic Detectors of IR Spectroscopy
Quantité : 5-2000 uni Prix : $269-$2000 (conventi
RTD3171MR Metallic Packaged Uncooled IR Light Detector employs a self-developed 17μm uncooled VOx thermal imaging sensor capable of 384×288 resolution. It features a combination of high sensitivity and reliability to meet stringent image quality requirements.
Resolution: 384×288
Pixel size: 17μm
Features of RTD3171MR Metallic Detectors of IR Spectroscopy
1. VOx microbolometer
2. Superior environment adaptability: no significant NETD change across its temperature range
3. High sensitivity: NETD＜60mK
4. Thermal time constant: <10ms</p>
5. Low fixed pattern noise (FPN)
6. User-friendly
Video of RTD3171MR Metallic Detectors of IR Spectroscopy
Specifications of RTD3171MR Metallic Detectors of IR Spectroscopy
|
Item |
Specifications |
|
Model |
RTD3171MR |
|
Sensor Technology |
Uncooled VOx microbolometer |
|
Spectral Range |
LWIR , 8~14μm |
|
Pixel Pitch |
17μm |
|
Array Format |
384 × 288 |
|
Operability |
≥99.5% |
|
NETD |
＜60mK |
|
Thermal Time Constant |
＜10ms |
|
Frame Rate |
≤60Hz |
|
Power Consumption |
＜150mW（@50hz, 25℃, excluding TEC） |
|
Output Signal |
Analog output |
|
Thermal Time Constant |
＜10ms |
|
Operating Temperature |
--40℃~+60℃ |
|
Package Type |
Metallic vacuum package |
|
Size |
32×23.5×7.67mm³ (without pin) |
|
Weight |
<25g</p> |
As a reliable thermal camera manufacturer, we will provide more sorts of related products for sale, anything you need, please contact us.
