S&A water chiller for 500w CNC Fiber laser cutter
Quantité : 1000 Prix : $6100AT

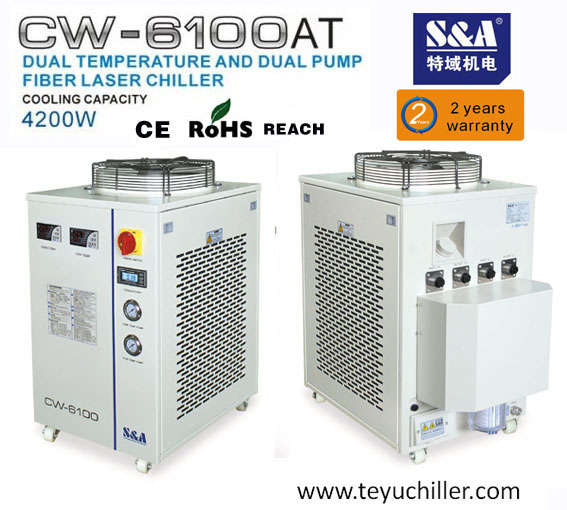

S&A water chiller for 500w CNC Fiber laser cutter
S&A CW-6100AT dual temperature and dual pump series is high-precision compression refrigeration water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.
S&A CW-6100AT is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.
S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
S&A water chiller CW-6100AT features
1. 4200W cooling capacity; optional environmental refrigerant;
2. ±0.5℃ precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHSREACH approval;
8. Long working life and easy operation;
9. Optional heater and water filter.
SPECIFICATIONS
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch
to appropriate operating temperature.
CW-6100AT:applied to cool a single 500W fiber laser;
Equipped with heat booster and water filter.
|
Model |
CW-6100ATH |
CW-6100BTH |
|
Voltage |
220V |
220V |
|
Frequency |
50Hz |
60Hz |
|
Current |
1~6.5 A |
|
|
Compressor power |
1.38KW |
1.29KW |
|
1.84HP |
1.72HP |
|
|
High + low temp system refrigeration capacity |
930Btu/h + 13640Btu/h |
930Btu/h + 12958Btu/h |
|
0.3KW + 4KW |
0.3KW + 3.8KW |
|
|
180Kcal/h + 3440Kcal/h |
180Kcal/h + 3268Kcal/h |
|
|
Refrigerant |
R-22 / R-410a |
|
|
Refrigerant charge |
950g |
900g |
|
Precision |
±0.5℃ |
|
|
Reducer |
Capillary |
|
|
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
|
|
High + low temp pump power |
0.1KW + 0.55KW |
|
|
High + low temp tank capacity |
4L + 12L |
|
|
High + low temp pump lift |
25M + 28M |
|
|
High + low temp inlet and outlet |
Rp1/2" + Rp1/2" |
|
|
High + low temp pump flow |
16L/min + 70L/min |
|
|
N.W |
65Kgs |
|
|
G.W |
75Kgs |
|
|
Dimension |
67 x 47 x 89 cm (L x W x H) |
|
|
Package dimension |
74 x 60 x 109 cm (L x W x H) |
|
CONTACT S&A
TE: +86-20-89301885
FAX: +86-20-84309967
SKYPE: teyuchiller
Email: marketing@teyu.com.cn
Website: http://www.teyuchiller.com
Personne à contacter : Mia Fung, +86 20 89301885
